Powerturn

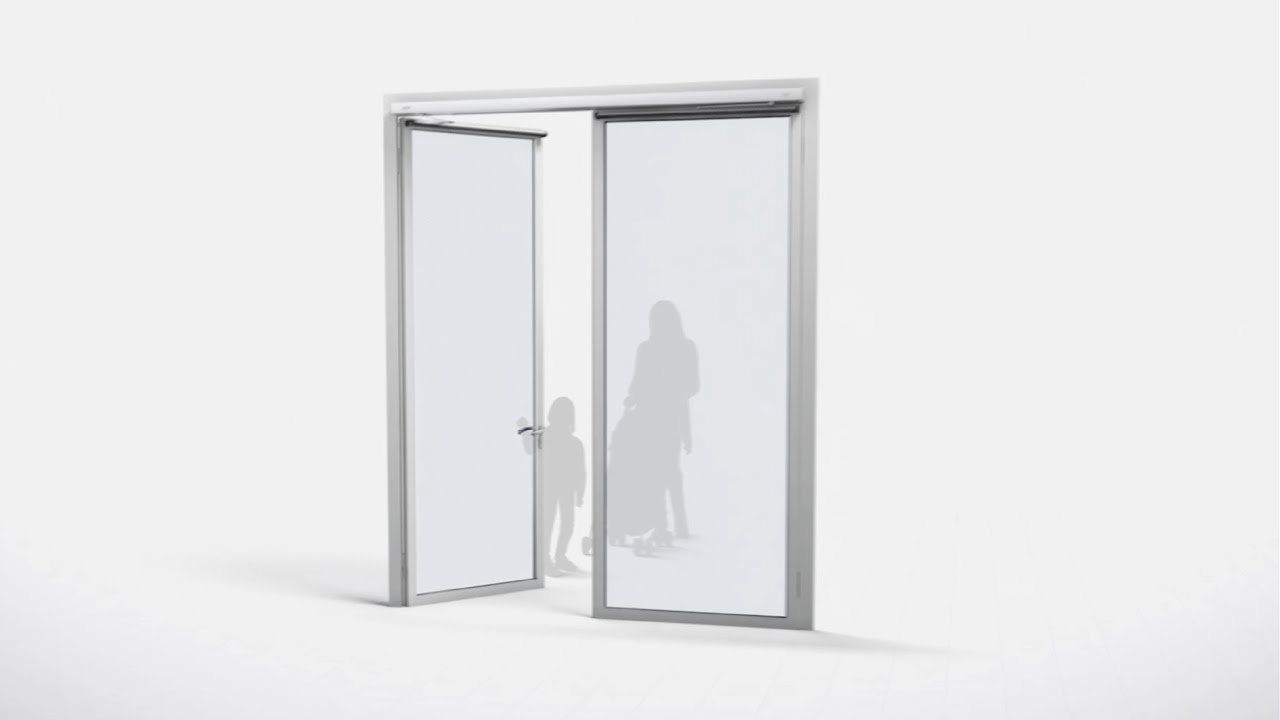

Powerturn IS/TS Semi-automatic system with swing door drive on active leaf and door closer on passive leaf

Powerturn IS/TS
  • Smart swing function for easy manual door opening
  • Adjustable closing force of EN3-7 with variable adjustment
  • Opening and closing speed can be adapted individually on the active leaf
  • Mechanical latching action which accelerates the door shortly before the closed position
  • Mechanical closing sequence control holds the active leaf in the waiting position until the passive leaf is closed
  • Low-energy function opens the door with reduced speed, fulfilling the highest safety requirements
Show more
  • Obstacle detection detects an object through contact and stops the opening or closing process
  • Automatic reversing detects an obstacle and returns to the opening or closing position
  • Push & Go function triggers the automatic drive components following manual door handle activation

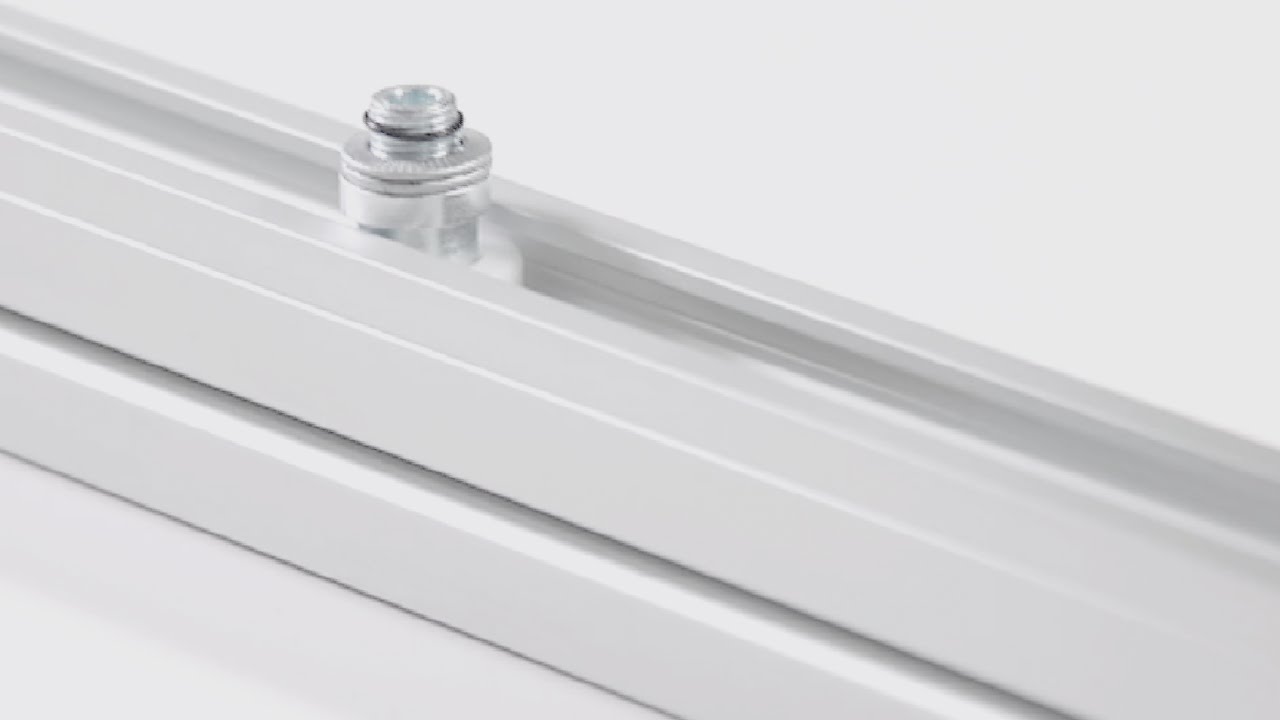

  • System available for use with roller guide rail or link arm
  • Optional radio reception board for wireless activation by radio transmitter
  • Freely configurable inputs and outputs for different functions
  • Can be networked, and integrated into the building automation via open standard (BACnet)
Contact us

Application Areas

  • Right and left double leaf single-action doors
  • Single-action doors up to 3200 mm hinge clearance with link arm installation
  • Single-action doors up to 3000 mm hinge clearance with roller guide rail installation
  • Minimum hinge clearance 1270 mm, minimum passive leaf width 470 mm (depending on installation type)
  • Interior and exterior doors with high access frequency
  • Symmetrical and asymmetrical division of door possible
  • Transom installation hinge and opposite hinge side

Technical data

Powerturn IS/TS
Leaf weight (max.) 1-leaf 600 kg
Minimum passive leaf width 470 mm
passive leaf width max. 1400 mm
active leaf width min. 800 mm
active leaf width max. 1600 mm
Reveal depth (max.) 160 mm
Opening angle (max.) 136 °
DIN left Yes
DIN right Yes
Transom installation opposite hinge side with link arm Yes
Transom installation hinge side with roller guide rail Yes
Mechanical latching action Yes
Electrical latching action Yes
Mechanical closing sequence control Yes
Disconnection from mains Main switch in the drive
Power supply for external consumers (24 V DC) 1.2 A
Service temperature -15 - 50 °C
Mode of operation Automatic, Off, Permanently open, Shop closing, Night
Automatic function Yes
Low-energy function Yes
function smart swing Yes
Servo function Yes
Obstacle detection Yes
Automatic reversing Yes
Push & Go adjustable
Operation Programme switch DPS, Programme switch integrated in the drive, MPS programme switch
Standard conformity DIN 18650, EN 16005
