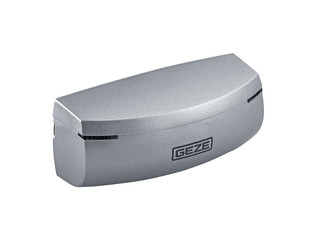

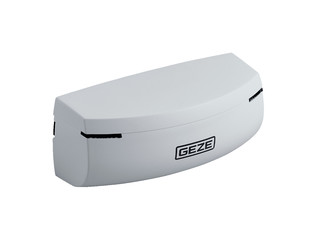

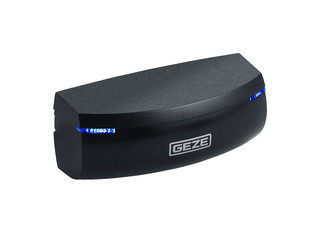

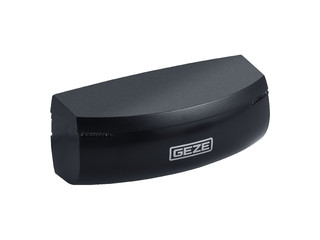

GC 308 Radar movement detector with individual adjustment option for activating automatic doors
- Individual settings for challenging environmental conditions
- Configuration possible via push buttons or remote control
- Compact dimensions, suitable for 7 cm profile heights
- Integrated motion tracking also records slow movements
- Movement direction detection and cross-traffic fade-out reduces energy consumption in the building
- Door opening impulse only triggered if needed
Radar sensors provide the most convenient and barrier-free access to automatic swing doors. The GC 308 R for automatic swing door systems and revolving doors sets new standards in this area, thanks to its compact design and simplified commissioning. Our GC 308 is a directionally-sensitive radar movement detector. Regardless of the installation situation, it can be installed on all types of automatic doors.
Application Areas

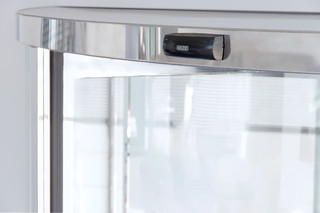

- Activation of automatic swing and revolving doors
- Interior and exterior doors
Technical data
| GC 308 | |

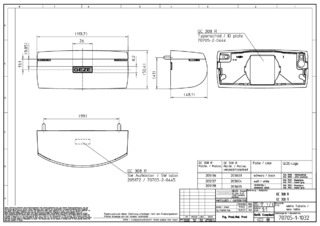

| Dimensions | 120 x 50 x 50 mm |
| Technology | Electromagnetic radar waves |
| Operating voltage | 12-24 V DC +30% /-10% / 12-24 V AC ± 10% |
| Switching voltage | 42 V DC |
| Operating current | 100 mA |
| Output | Potential-free relay contact |
| IP rating | IP54 |
| Connection type | System plug-type connector |
| Connector cable length | 2500 mm |
| Installation height (min.) | 1800 mm |
| Installation height (max.) | 4000 mm |
| Transmission frequency | 24.15 GHz |
| Weight | 120 g |
| Service temperature | -20 - 55 °C |
| Humidity | 0-95 % relative, non-condensing |
| Approvals | RED 2014/53/EU, RoHS 2011/65/EU |
