Laser scanner

GC 342 Laser scanner for the protection of automatic doors and windows with integrated object and wall blanking

GC 342 Laser scanner, Single sensor left compact safety sensor, safeguarding
  • Compact and space-saving safety sensor
  • Narrow detection area secures door leaf widths up to max. 1600 mm
  • Integrated object and wall blanking near maximum door opening
  • Protection area on the main closing edge is automatically expanded depending on the door angle
  • Automatized teaching of the system with the push of a button
  • Avoidance of hazards at pinching and shearing edges on automated windows
Contact us

GC 342

Application Areas

  • Protection of automatic swing and revolving doors
  • Interior and exterior doors
  • Use on doors up to 1600 mm leaf width
  • Complicated flooring, such as reflective floors, entrance mats, metal rails
  • Use on doors with continuous vertical pull handle
  • Protection of the main and secondary closing edges on automated windows

Installation situations in reference objects and videos

!Slimdrive EMD-F/R-IS, Uni Schloss Mannheim! !Slimdrive EMD-F/R-IS mit Laserscanner GC 342 und Radarmelder GC 302 an einer 2-flügeligen Tür an der Universität Schloss Mannheim!

!Slimdrive EMD-F/R-IS, Uni Schloss Mannheim!

!Slimdrive EMD-F/R-IS mit Laserscanner GC 342 und Radarmelder GC 302 an einer 2-flügeligen Tür an der Universität Schloss Mannheim! © Nico Walke / GEZE GmbH

Slimdrive EMD with GC 342 laser scanner and TZ 320 door control unit The largest science centre in Germany, the experimenta in Heilbronn. Equipped with innovative GEZE technology, it offers its visitors a unique world of knowledge and experience.

Slimdrive EMD with GC 342 laser scanner and TZ 320 door control unit

The largest science centre in Germany, the experimenta in Heilbronn. Equipped with innovative GEZE technology, it offers its visitors a unique world of knowledge and experience. © Jürgen Pollak / GEZE GmbH

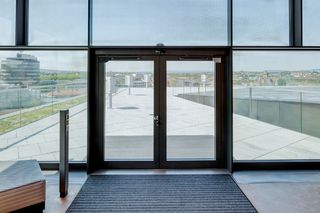

GEZE Slimdrive EMD IS with GC 342 laser scanner The largest science centre in Germany, the experimenta in Heilbronn. Equipped with innovative GEZE technology, it offers its visitors a unique world of knowledge and experience.

GEZE Slimdrive EMD IS with GC 342 laser scanner

The largest science centre in Germany, the experimenta in Heilbronn. Equipped with innovative GEZE technology, it offers its visitors a unique world of knowledge and experience. © Jürgen Pollak / GEZE GmbH

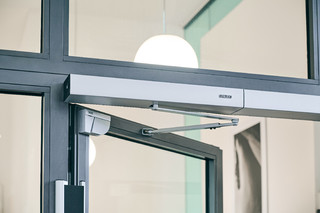

GEZE Powerturn F/R with GC 342 laser scanner The largest science centre in Germany, the experimenta in Heilbronn. Equipped with innovative GEZE technology, it offers its visitors a unique world of knowledge and experience.

GEZE Powerturn F/R with GC 342 laser scanner

The largest science centre in Germany, the experimenta in Heilbronn. Equipped with innovative GEZE technology, it offers its visitors a unique world of knowledge and experience. © Jürgen Pollak / GEZE GmbH

GC 342 Laser scanner Absolute reliability and safety and a clear, modern design line.

GC 342 Laser scanner

Absolute reliability and safety and a clear, modern design line. © GEZE GmbH

GEZE Powerturn F/R with GC3 42 laser scanner The largest science centre in Germany, the experimenta in Heilbronn. Equipped with innovative GEZE technology, it offers its visitors a unique world of knowledge and experience.

GEZE Powerturn F/R with GC3 42 laser scanner

The largest science centre in Germany, the experimenta in Heilbronn. Equipped with innovative GEZE technology, it offers its visitors a unique world of knowledge and experience. © Jürgen Pollak / GEZE GmbH

Technical data

GC 342
Dimensions 143 x 86 x 40 mm
Technology Laser scanner, light travel time measurement
Number of active infrared detectors 1
Operating voltage 12-24 V DC ± 15%
Switching voltage 42 V
Switching current 100 mA
Output 2 potential-free relay contacts
IP rating IP54
Connector cable length 2500 mm
Installation height (min.) 1500 mm
Installation height (max.) 3870 mm
Reaction time Door leaf safety: < 50 ms / pinch zone safety: < 90 ms
Service temperature -30 - 60 °C
Humidity 0-95 % relative, non-condensing
Standard conformity DIN 18650, EN 16005

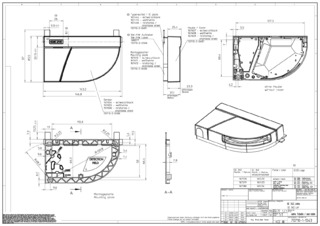

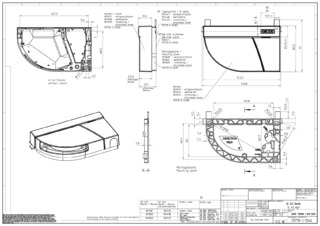

Downloads

!Slimdrive EMD-F/R-IS, Uni Schloss Mannheim!

LABELLING OBLIGATION:  © Nico Walke / GEZE GmbH

Installation situation (2274901)
!Slimdrive EMD-F/R-IS, Uni Schloss Mannheim!

LABELLING OBLIGATION:  © Nico Walke / GEZE GmbH

Installation situation (2274905)

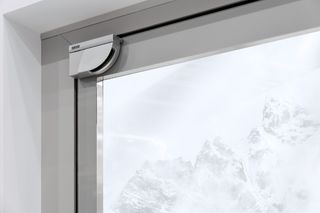

GC 342 Laser scanner
