Sensor strips

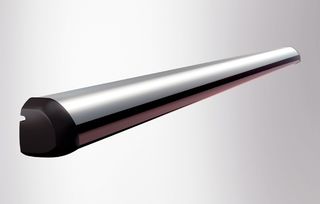

GC 338 Sensor strip with standby mode for the protection of automatic swing and revolving doors

GC GR sensor roller guide rail + GC 338 sensor Sensors and activation device, GC GR sensor roller guide rail for TSA 160 NT and Slimdrive EMD in lengths 1100 mm and 1500 mm
  • Energy and space-saving sensor strip
  • Standby mode provides up to 50 % energy savings and increases the life span of the LED diodes
  • Closely monitored detection area secures leaf widths up to 1500 mm
  • Integrated object and wall blanking near maximum door opening
  • Automatized teaching of the system with the push of a button
  • All settings can be conveniently made by DIP switch
Show more
  • Click installation in the sensor cut-out profile reduces installation work
Contact us

GC 338

Application Areas

  • Protection of automatic swing and revolving doors
  • Interior and exterior doors
  • Complicated flooring, such as reflective floors, entrance mats, metal rails
  • Narrow door profiles
  • Door widths 600 to 1500 mm
  • Minimum possible length of the sensor strip with 1 transmitter/receiver module each: 51 cm
  • Minimum possible length of the sensor strip with 2 transmitter/receiver modules each: 83 cm

Installation situations in reference objects and videos

Powerturn F with LS 990 Powerturn F: Electromechanical swing door drive with LS 990 elbow switch for activating automatic doors.

Powerturn F with LS 990

Powerturn F: Electromechanical swing door drive with LS 990 elbow switch for activating automatic doors. © Jürgen Pollak / GEZE GmbH

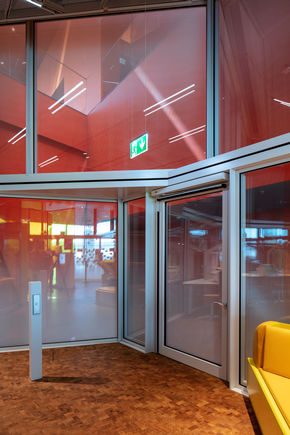

GEZE Powerturn with GC 338 sensor strip The largest science centre in Germany, the experimenta in Heilbronn. Equipped with innovative GEZE technology, it offers its visitors a unique world of knowledge and experience.

GEZE Powerturn with GC 338 sensor strip

The largest science centre in Germany, the experimenta in Heilbronn. Equipped with innovative GEZE technology, it offers its visitors a unique world of knowledge and experience. © Jürgen Pollak / GEZE GmbH

Technical data

GC 338
Technology Active infrared beams
Switching voltage 30 V
Switching capacity max. 100 mA
Operating current 30 mA
IP rating IP54
Connector cable length 5000 mm
Installation height (min.) 1500 mm
Installation height (max.) 3500 mm
Reaction time < 52 ms and < 200 ms in boost mode
Service temperature -30 - 60 °C
Humidity < 90% relative, non-condensing
Standard conformity EN 16005, DIN 18650

Downloads

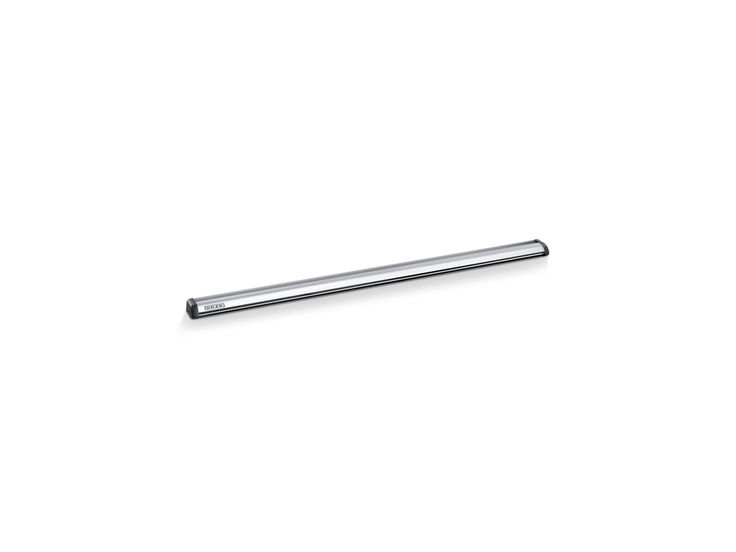

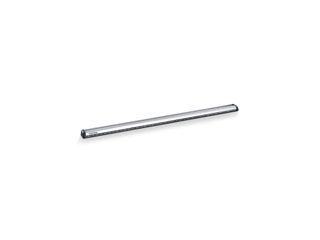

GC 338 Sensor strip

LABELLING OBLIGATION:  © GEZE GmbH

Product shot (461960)

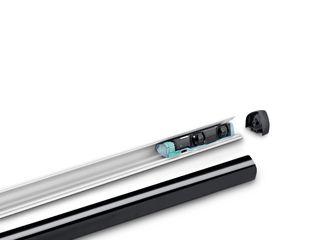

GC GR sensor roller guide rail + GC 338 sensor

LABELLING OBLIGATION:  © GEZE GmbH

Product shot (642869)

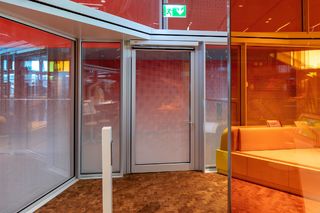

GEZE Powerturn with GC 338 sensor strip

LABELLING OBLIGATION:  © Jürgen Pollak / GEZE GmbH

Installation situation (1224075)
GEZE Powerturn with GC 338 sensor strip

LABELLING OBLIGATION:  © Jürgen Pollak / GEZE GmbH

Installation situation (1224077)
Powerturn F with LS 990

LABELLING OBLIGATION:  © Jürgen Pollak / GEZE GmbH

Installation situation (736552)

Variants & Accessories

Weather hood GC 335 / GC 338
Accessories

Weather hood

Accessory for the sensor strip

Product details

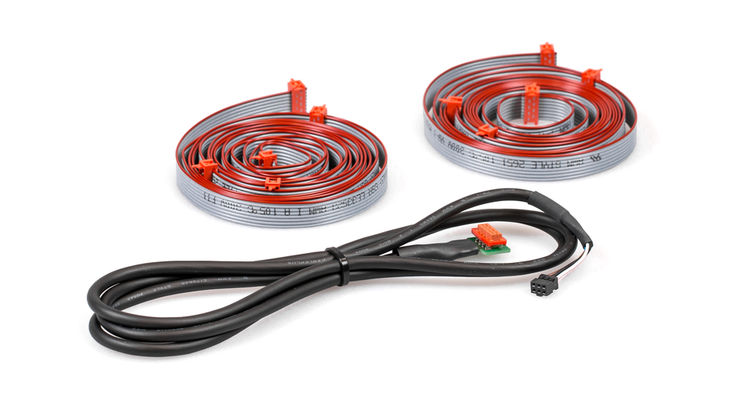

GC 338 Cable set
Accessories

Cable set GC 338

Accessory for the sensor strip

Product details
