Sensor switch

Mini LED sensor switch Activation of all GEZE automatic doors

Mini-LED sensor switch Activation of all door drives for internal application and in the outer area
  • Touch-sensitive capacitive push button with green/red LED illumination
  • Long service life - more than 100 million hystereses
  • Shock-resistant and protected from vandalism by protection degree IP08
  • Requires drilling hole diameter of 22.2 mm
  • Continuously illuminated green (can be switched off), illuminated red when touched
  • IP rating IP69
Contact us

Mini LED sensor switch

Application Areas

  • For activation of all GEZE automatic doors
  • High-quality and hygienic activation with visual feedback of the activation command

Technical data

Mini LED sensor switch
Dimensions 28.5 x 28.5 x 21 mm
Current consumption 20 mA
Output PNP transistor output
IP rating IP69K
Type of installation Flush-mounted installation
Connection type Cable prepared for connection to screw terminal
Connector cable length 200 mm
Service temperature -30 - 70 °C

Downloads

Mini-LED sensor switch

LABELLING OBLIGATION:  © GEZE GmbH

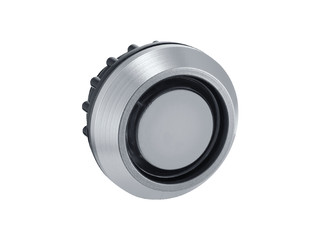

Product shot (932552)
