GC 307+ Non-contact proximity switch for activating automatic doors
- Doors can be opened without a requirement for tactile perception
- External input for LED colour change
- Detects persons and objects in a detection area of 10 - 60 cm
- Scanning ranges adjustable to make environmentally and user-specific adjustments
- Hand-height mounting ensures convenient, barrier-free access
- Can also be installed behind tiles or glass
- Adjustable via DIP switch and remote control; acoustic feedback, LED colours, LED animations, pulse/toggle mode
- WC control function for locking and automatic unlocking of toilets
Application Areas
- Non-contact activation of automatic swing, sliding, folding, revolving and curved sliding doors
- Interior and exterior doors
- Rooms with high hygiene demands
Installation situations in reference objects and videos
SJD Paediatric Cancer Centre
Non-contact proximity switch GC 307+ for activation of automatic doors in the Paediatric Cancer Centre Barcelona. © Pau Esculies / GEZE Iberia

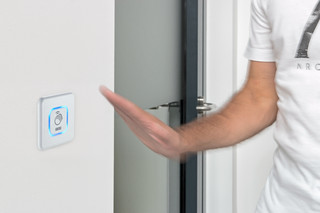

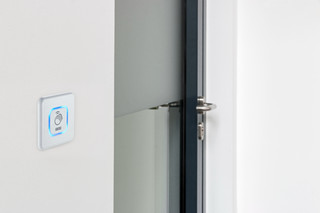

Excellent hygiene & barrier-free access: with the GC 307+
Non-contact sensors are used where manual activation is required, but – for example for hygienic reasons – should be carried out without touching. © GEZE GmbH

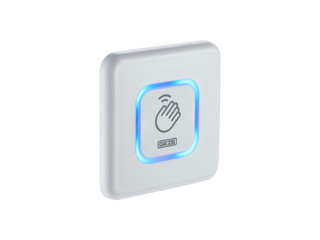

GC 307+ proximity switch
With the GC 307+, GEZE offers a radar sensor for the efficient and hygienic activation of automatic doors – non-contact and convenient at hand height. © GEZE GmbH
Technical data
| GC 307+ | |
| Dimensions | 80 x 80 mm |
| Technology | Electromagnetic radar waves |
| Operating voltage | 12-24 V DC +30% /-10% / 12-24 V AC ± 10% |
| Switching capacity max. | 100 mA |
| Output | Electrical relay |
| IP rating | IP65 |
| Connection type | Screw terminal |
| Adjustability | Per DIP switch, with remote control |
| Installation height | at hand level |
| Transmission frequency | 24.15 GHz |
| Service temperature | -20 - 55 °C |
| Standard conformity | RED 2014/53/EU, RoHS 2011/65/EU |
