TSA 325 NT
TSA 325 NT BO Automatic revolving door system for escape and rescue routes with break-out function
- BO function allows the leaves and side elements to swing open in the direction of escape
- Integrated electrical lockings for "night" mode of operation
- Very quiet running, low-wear drive solution with a canopy height of at least 200 mm
- Precise closing of the door leaves with the side walls
- Effective insulation effect against draughts, weather and noise
- Adjustable automatic speed setting, in line with the number of people passing through
- Manual operation of the door possible, e.g. to carry out cleaning work
- Can be networked, and integrated into the building automation via open standard (BACnet)
- Independent error recognition and recording
- Freely configurable inputs and outputs for different functions
- Integrated, rechargeable battery for emergency opening in case of safety-relevant faults, such as power failure
Application Areas
- 3- and 4-leaf door systems in escape and rescue routes
- Interior and exterior doors with maximum safety requirements
- Representative building entrances with large incidence of light
- Façades with slim mullion-transom constructions
- Glass façades with the highest design standards
- Inner diameter ranging from 1800 to 3600 mm possible
- Suitable profile systems are fine-framed profile systems with ISO and mono glass
Technical data
| TSA 325 NT BO | |
| Manual operation | No |
| With speed limiter (optional) | No |
| With positioning device (optional) | No |
| Fully automatic operation | Yes |
| Servo function | No |
| Suitability for escape and rescue routes | Yes |
| Break-out function (BO) | Yes |
| Inner diameter (min.) | 1800 mm |
| Inner diameter (max.) | 3600 mm |
| For 3-leaf door systems | Yes |
| For 4-leaf door systems | Yes |
| Clear passage height | 3000 mm |
| Canopy height (min.) | 200 mm |
| Side elements version | 10 mm LSG, 22 mm panel lining, 34 mm smooth-surface panel, Special glass on request |
| Version of roof structure | As dust protection roof with wood covering, optical sheet metal covering, waterproof roof with waterspout |
| Illumination | with roof variant |
| Floor covering | Entrance mat, Entrance mat, according to the customer’s request |
| Hot-air curtain system | Electric air curtain, hot water air curtain, possible, depends on the ceiling construction |
| Night-time closer layout | Inside, Outside |
| Night-time closer type | Manual, Automatic |
| Night-time closer design | 10 mm LSG, 22 mm ISO glass, 22 mm panel lining, Special glass on request |
| Lock | Manual, Rod, electromechanical |
| Door handles horizontal or vertical | Yes |
| Floor ring | Yes |
| Underfloor operator | No |
| Push pad | Yes |
| Standard conformity | DIN 18650, EN 16005 |
Downloads

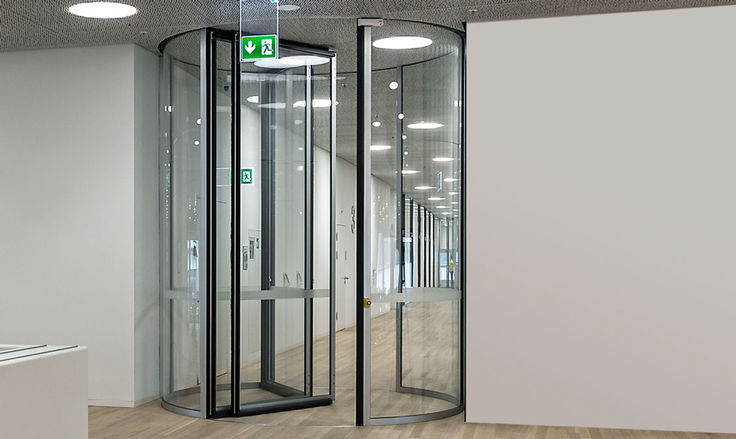

Product Image revolving door website TSA 325 NT BO
LABELLING OBLIGATION:
© Lorenz Frey / GEZE GmbH

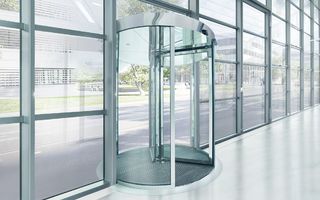

TSA 325 NT BO
LABELLING OBLIGATION:
© GEZE GmbH
