Hermetically sealing doors by GEZE at the Warsaw Children’s Clinic
The Children’s Memorial Institute (CMHI) is one of the biggest and most modern paediatric centres in Poland. Modern door systems by GEZE ensure accessibility and hygiene in the new operating theatres: Hermetically sealing operating theatre doors are perfectly complemented by non-contact radar and proximity switches.
Healing Architecture – modern hospital architecture in Poland
The concept of a children's hospital as a permanent sign of ‘preserving life and health’ dates back to 1965 and was the brainchild of the famous Polish children’s author and Holocaust survivor Ewa Szelburg-Zarembina. The idea turned into the ‘Life and health” social project, and formed the foundation for today's CMHI Instytut Pomnik – Centrum Zdrowia Dziecka (Children's Memorial Health Institute) in Warsaw .
More than barrier-free - the GEZE automatic door system in the new operating theatres
The latest modernisation, totalling 20 million euro, included expanding the operating facilities to 12 operating theatres, with two additional intensive care units. The Warsaw-based GEZE subsidiary played a key role in fitting and designing 64 automatic door systems, in close and long-standing cooperation with the medical technology provider Climatic Company.
Hermetic sliding door systems

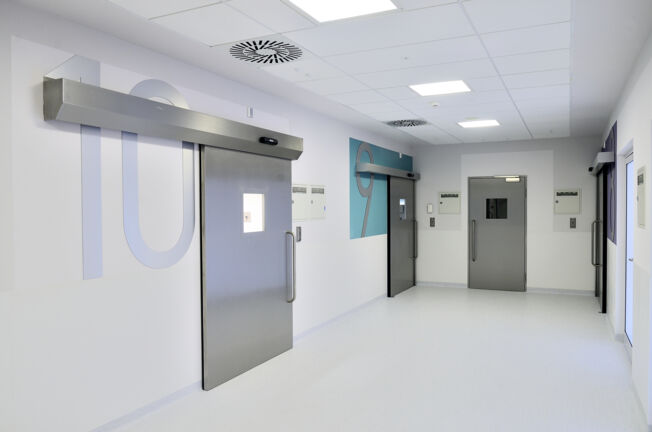

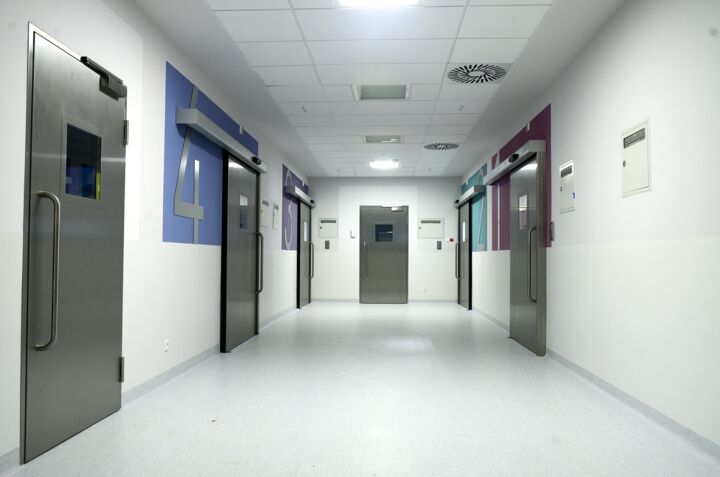

Hermetic sliding door systems with Powerdrive HT drives for large and heavy door leaves. © H. Łukasz Janicki / GEZE Polska

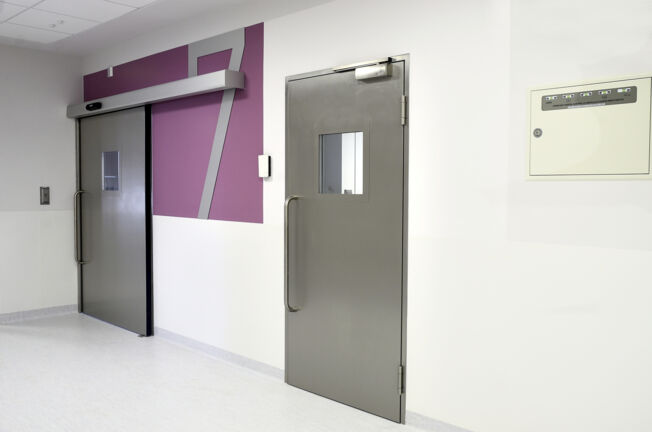

Manual door with TS 3000 V door closers and guide rails for leaf widths of up to 1100 millimetres. © H. Łukasz Janicki / GEZE Polska
Hydraulic swing door systems

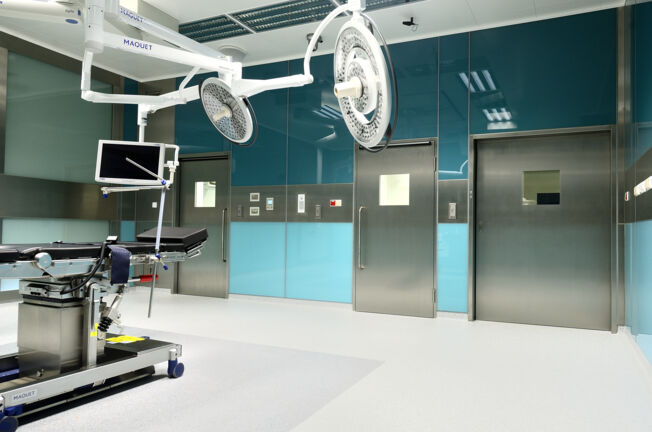

The TSA 160 NT hydraulic swing door system for 1,600 mm wide door leaves up to 310 kg. © H. Łukasz Janicki / GEZE Polska
Hermetic and automatic – sealing operating theatre doors

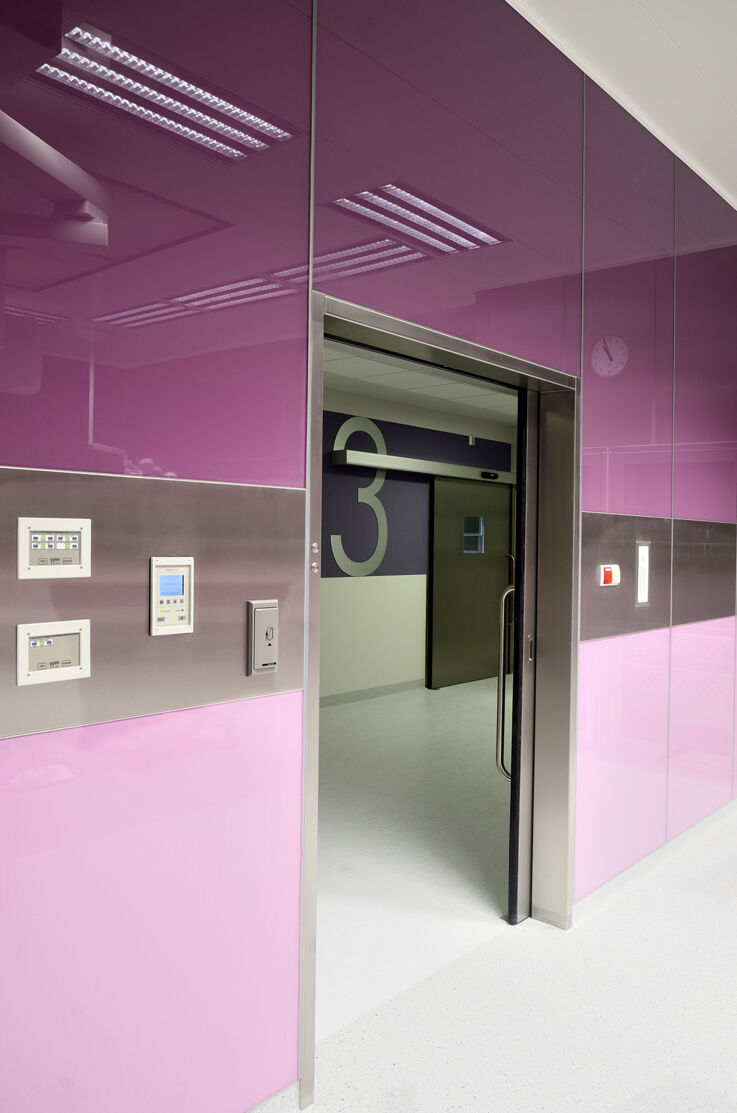

Elegant solution: EC drive sliding door system for door leaves up to 120 kg. © H. Łukasz Janicki / GEZE Polska
operating theatres and intensive care units are among the most sensitive areas of the clinic in terms of hygiene. Doors must open very quickly and reliably with barrier-free access, and close with a good seal. The large and heavy door leaves at the wide opening to the largest hybrid operating theatre were therefore equipped with hermetically sealing automatic Powerdrive HT sliding door operator systems.
Powerdrive HT systems create a hermetic seal with the perimeter profile in the final part of the closing process. The hermetic seal with the perimeter profile of the door opening and the floor is created by pushing together special seals that are attached to the perimeter of the door leaf.
Powerdrive door systems were also fitted on large sliding door leaves of up to 200 kilograms. The best example is the specialised doors in the X-ray area, where reliable shielding from the rays is crucial.
Reliable and quiet – sliding and swing door systems by GEZE

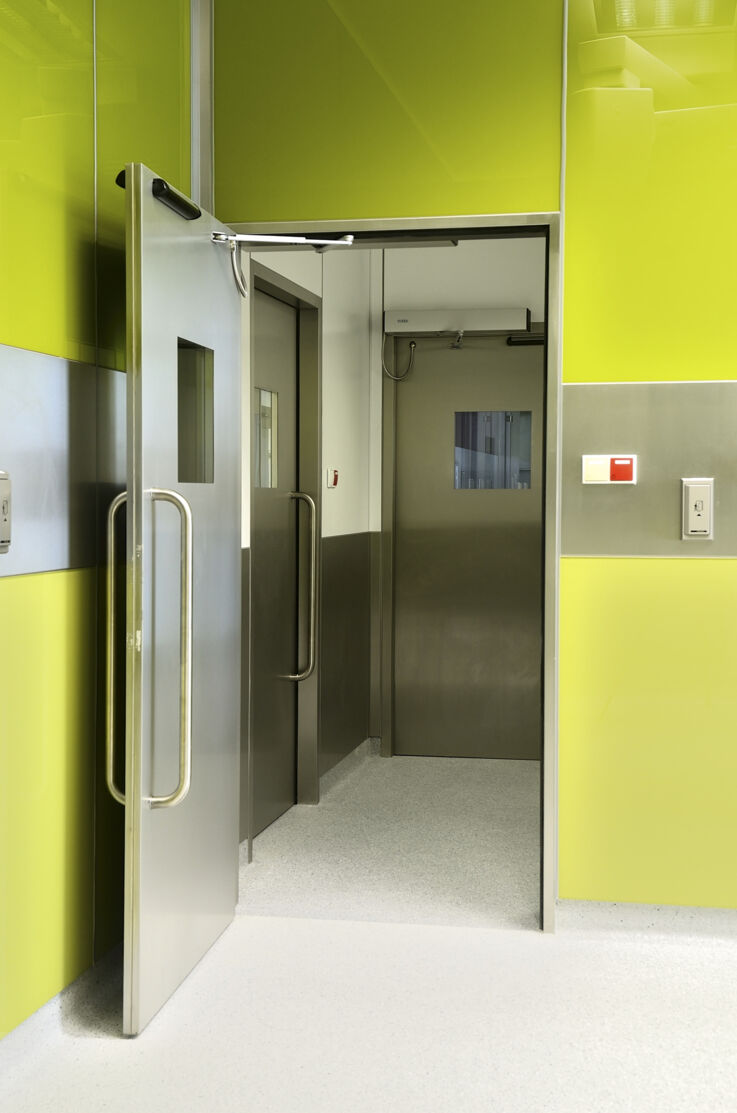

Practical and hygienic: TSA 160 NT-F swing door systems. © H. Łukasz Janicki / GEZE Polska
EC drive sliding door systems ensure fast and reliable automatic opening of frequently used doors, e.g. in service areas. EC drive door drives handle countless movement cycles of door leaves of up to 120 kg with a consistently high level of barrier-free comfort. With a rounded drive cover, this economical drive solution also supports the uniform look of the many stainless steel doors throughout the clinic building.
Powerdrive and EC drive sliding door system offer optimal ease of access. Their hold-open time adapts to the usage frequency. If the stream of visitors is higher, the door leaves are automatically kept open for longer. The movement parameters of the door leaves can be adjusted individually.
GEZE technology is also in use on the automatic swing doors. The quiet electro-hydraulic TSA 160 NT swing door drive easily and discreetly moves even heavy swing doors with leaf weights. All parameters, such as the opening and closing speed, obstacle detection or hold-open time can be adapted according to the building use. The ‘Push & Go’ function, which can be switched on or off, allows the door drive to be controlled by briefly pressing the door leaf.
Barrier-free and hygienic electric strikes – radar detectors and elbow switches by GEZE
In clinics, being able to enter and open doors ‘without barriers’ and the best possible hygiene for activation devices are essential. The GEZE GC 307+ opens automatic doors without any contact at all. A light hand movement in front of the push button is sufficient. In particularly time-critical situations, a door is already open, for example, before the doctor reaches it. Swing doors also open by briefly touching the door leaf thanks to a ‘Push & Go” solution.
In other cases, the control is activated via GEZE elbow switches These push buttons can also be activated using the elbow to open the door sooner. Hygienic push buttons with antibacterial copper surfaces prevent the spread of germs throughout the clinic.
Forward-thinking: automatic door systems

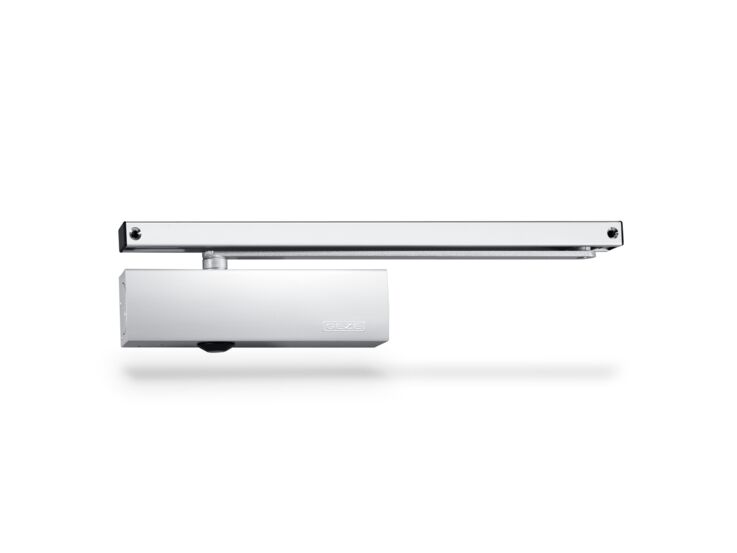

State-of-the-art controls make GEZE automatic door systems fit for the future. They can be combined with the GEZE SecuLogic rescue route and access control system. The system integration in the building management system also allows door functions to be monitored or changed remotely. Manual doors are kept closed throughout the clinic with GEZE door closer systems for preventive fire protection. From the smallest overhead door closer to the multi-faceted variations for use with fire and smoke protection doors, the door closer systems offer many individual adjustment options: For example, double-leaf doors were equipped with the TS 5000 ISM variants. The closing sequence control integrated in the guide rail ensures the correct closing sequence of both door leaves. The active leaf is kept open, and therefore ‘waits’ until the passive leaf is closed to ensure reliable door closure.
Non-contact proximity switch
The GEZE GC 306 non-contact proximity switch for activating automatic doors. (Note: an alternative to the GC 306, which is no longer sold, is the GC 307+).
Hygienic non-contact proximity switch

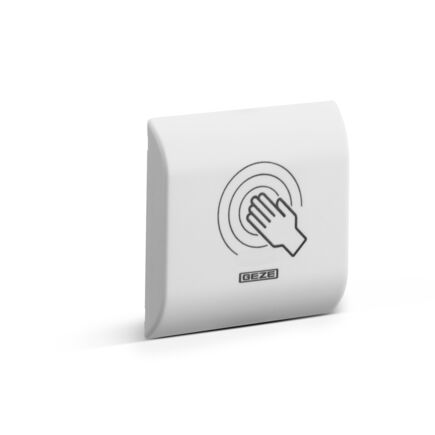

GEZE GC 306 hygienic non-contact proximity switch.
GEZE offers solutions from a single source that combine comfort and safety requirements into intelligent systems. These are just some of the systems to which GEZE contributed at the Children's Memorial Health Institute (CMHI) in Warsaw
Technical solutions by GEZE at the Children’s Memorial Health Institute (CMHI) in Warsaw
- Hermetically sealing sliding door systems with Powerdrive HT drives for large and heavy door leaves
- TSA 160 NT hydraulic swing door system for 1,600 mm width door leaves up to 310 kg
- EC drive sliding door system for door leaves up to 120 kg
- The GEZE GC 307+ radar and non-contact proximity switch for activating automatic doors
- TS 3000 V door closers and guide rails for leaf widths of up to 1100 millimetres
- Solutions for smoke and heat extraction and smoke venting
