Guide rail 1-leaf

TS 3000 V Overhead door closer with guide rail for single leaf doors with a leaf width up to 1100 mm

TS 3000 V overhead door closer with guide rail Can be installed on right and left single-action doors/fire and smoke protection doors.
  • Closing force EN1-4 with variable adjustment
  • Can be used for right and left hand doors without conversion
  • Hydraulic latching action which accelerates the door shortly before it is closed
  • Closing speed can be individually adjusted
  • All functions can be set from the front (except for closing force)
Contact us

TS 3000 V

Application Areas

  • Fire and smoke protection doors
  • Right and left single-action doors
  • Single-action doors up to 1100 mm leaf width
  • Door leaf and transom installation on the hinge and opposite hinge side

Technical data

TS 3000 V
Closing force in accordance with EN 1154 EN 1 - 4
Barrier-free in accordance with DIN 18040 up to leaf width (max.) in mm 1100 mm
Leaf width (max.) 1100 mm
Type of installation Door leaf installation hinge side, Transom installation opposite hinge side, Transom installation hinge side, Door leaf installation opposite hinge side
Opening angle (max.) 180 °
Suitability for fire protection doors Yes
Closing force adjustable Yes, stepless
Adjustable closing speed Yes
Latching action adjustable Yes, via valve
Back check integrated No
Position of closing force adjustment At the side
Hold-open function Optional

Downloads

Door closer TS 3000 in the hospital

LABELLING OBLIGATION:  © Łukasz Janicki / GEZE GmbH

Installation situation (588410)

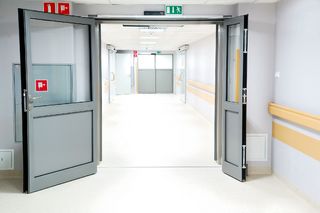

Door closer TS 3000 V at Medicus Clinic in Wrocławiu, Poland

LABELLING OBLIGATION:  © Fotografia Maciej Lulko / GEZE GmbH

Installation situation (839559)

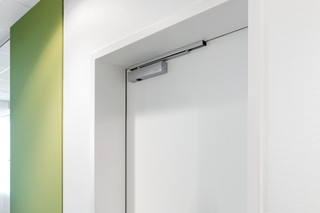

Door closer TS 3000 V und TS 5000 R in office & corporate buildings

LABELLING OBLIGATION:  © Dirk Wilhelmy / GEZE GmbH

Installation situation (50261)
Door closer TS 5000 und 3000 ISM at the Military Institute of Medicine

LABELLING OBLIGATION:  © Łukasz Janicki / GEZE GmbH

Installation situation (579764)
GEZE TS 5000 L and guide rail BG lintel mounting TS 3/5000 L

LABELLING OBLIGATION:  © GEZE GmbH

Installation situation (1610740)

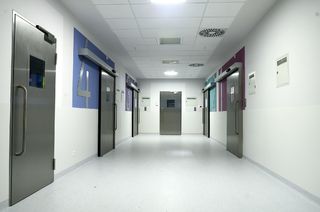

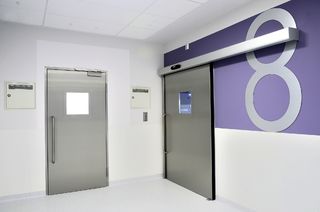

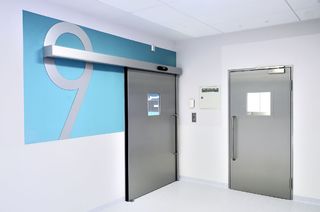

Hygienic Doors at Children's Memorial Health Institute

LABELLING OBLIGATION:  © H. Łukasz Janicki / GEZE Polska

Installation situation (896870)

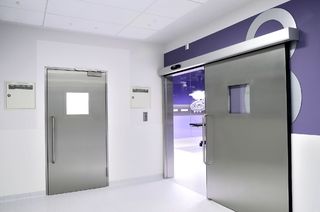

Hygienic Doors at Children's Memorial Health Institute

LABELLING OBLIGATION:  © H. Łukasz Janicki / GEZE Polska

Installation situation (896860)

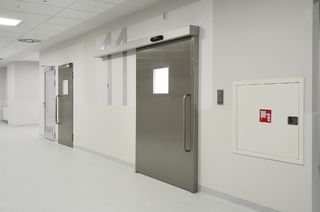

Hygienic Doors at Children's Memorial Health Institute

LABELLING OBLIGATION:  © H. Łukasz Janicki / GEZE Polska

Installation situation (896911)
Hygienic Doors at Children's Memorial Health Institute

LABELLING OBLIGATION:  © H. Łukasz Janicki / GEZE Polska

Installation situation (896872)
Hygienic Doors at Children's Memorial Health Institute

LABELLING OBLIGATION:  © H. Łukasz Janicki / GEZE Polska

Installation situation (896880)
Hygienic doors at the Children's Memorial Health Institute

LABELLING OBLIGATION:  © H. Łukasz Janicki / GEZE Polska

Installation situation (896915)

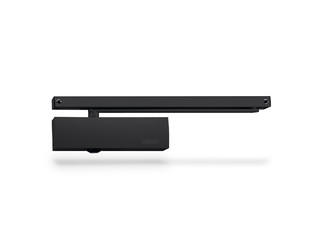

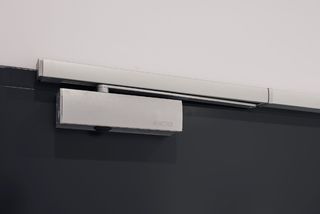

TS 3000 V overhead door closer with guide rail

LABELLING OBLIGATION:  © GEZE GmbH

Product shot (49438)

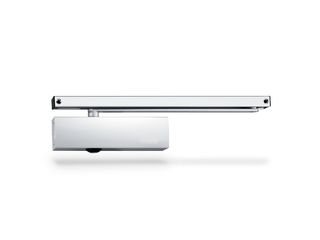

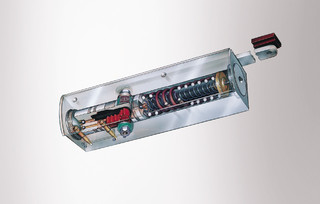

Illustration TS 3000 V

LABELLING OBLIGATION:  © GEZE GmbH

Product shot (46467)
TS 3000 V Overhead door closer

LABELLING OBLIGATION:  © GEZE GmbH

Product shot (1378679)

Variants & Accessories

Guide rail TS 5000/TS 3000 vertically adjustable
Parts

Guide rail TS 5000 / 3000 vertically adjustable

With height compensation +/- 2 mm and lever

Product details
Guide rail TS 5000/TS 3000 vertically adjustable
Parts

Guide rail BG TS 5000 / 3000 vertically adjustable

With height compensation +/- 2 mm, with lever, opposite hinge side

Product details
Guide rail TS 3/5000 BG
Parts

Guide rail TS 5000 / 3000

Standard guide rail with lever

Product details
