Powerdrive PL-HT Automatic linear sliding door system for large and heavy doors in areas with increased hygiene stipulations
- Consists of the drive kit, aluminium profiles, guide profiles and seals
- Door construction can be freely selected by the customer
- Hermetic seal by lowering and pressing the door leaf against the frame structure
- Full circumferential sealing system with sealing corners reduces the air permeability of the closed sliding door system
- Optimised opening widths for hospital operation (nurse opening, cleaning opening, bed opening)
- Can be networked, and integrated into the building automation via open standard (BACnet)
- Independent error recognition and recording
- Freely configurable inputs and outputs for different functions
- Integrated battery for emergency opening and closing in the event of a power failure
- Self-cleaning roller carriage reduces maintenance effort and costs
- Various mechanical and electrical locks are optionally available
Application Areas
- Single leaf sliding door systems
- Interior doors with increased hygiene requirements, such as operating rooms, laboratories, clean rooms
- Opening widths from 800 to 2500 mm possible
- Door leaf weights of up to 200 kg
- Fine-framed profile system with ISO glass is the suitable profile system
Installation situations in reference objects and videos

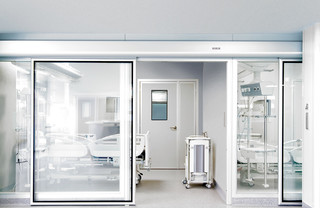

SJD Paediatric Cancer Centre
The area, which contains operating rooms, X-ray rooms and the special area for immunocompromised patients, is equipped with particularly hygienic doors and the Powerdrive PL-HT automatic linear sliding door system, specifically for large and heavy doors in areas with increased hygiene requirements. © Pau Esculies / GEZE Iberia

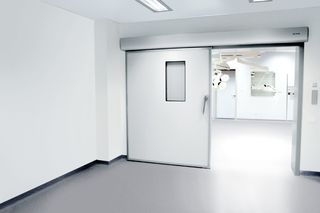

Drive solution GEZE Powerdrive PL-HT kit in an operating room door
Automatic linear sliding door system for large heavy doors in areas with increased hygiene demands © GEZE GmbH
Sliding door solutions from GEZE, product video
ECdrive T2, Slimdrive and Powerdrive: Tailored, efficient and open to the demands of tomorrow.
Technical data
| Powerdrive PL-HT | |
| For 1-leaf door systems | Yes |
| Leaf weight (max.) 1-leaf | 200 kg |
| Opening width 1-leaf | 800 mm - 2500 mm |
| Service temperature | -15 - 50 °C |
| IP rating | IP20 |
| Disconnection from mains | Main switch in the drive |
| Standard conformity | DIN 18650, DIN EN ISO 13849: Performance Level D, EN 16005 |
