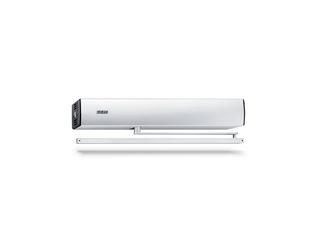

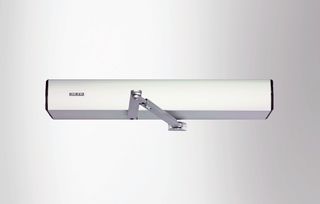

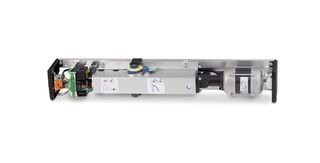

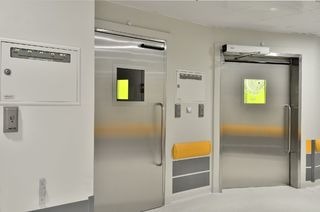

TSA 160 NT Electrohydraulic swing door drive for single leaf doors up to 250 kg
- Closing force with variable adjustment EN3-6
- Opening and closing speed can be individually adjusted
- Hydraulic latching action which accelerates the door shortly before it is closed
- Mechanical and electrical closing sequence control holds the active leaf in the waiting position until the passive leaf is closed
- Vestibule function controls the opening and closing of two consecutive doors (interlocking door system)
- Integrated back check, slows down doors that are thrown open forcefully
- Automatic reversing detects an obstacle and returns to the opening position
- Push & Go function triggers the automatic drive following light manual pressure on the door leaf

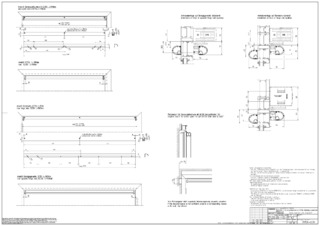

- Drive can be used with roller guide rail or link arm

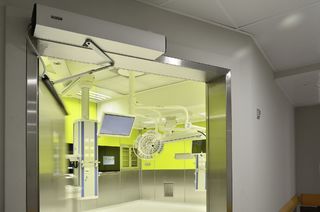

Application Areas

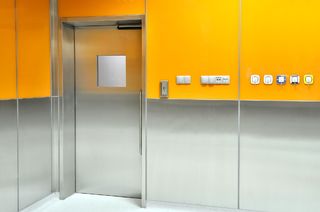

- Single-action, single leaf, right and left closing doors
- Single-action doors up to 1400 mm leaf width or 250 kg weight
- Interior and exterior doors with high access frequency

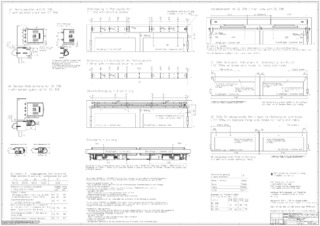

- Door leaf installation and transom installation

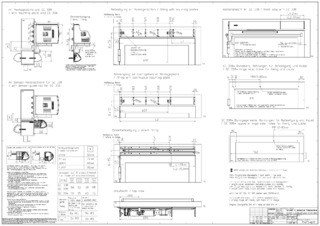

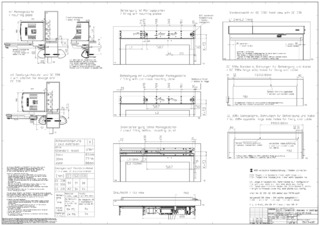

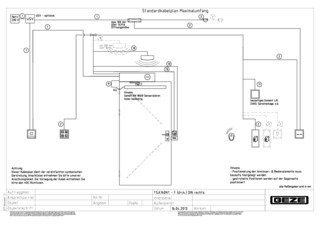

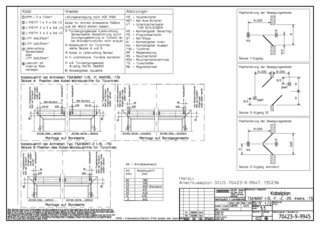

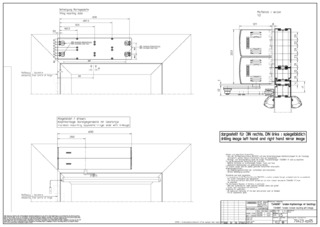

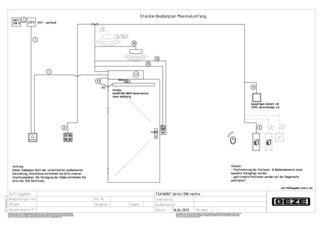

Technical data
TSA 160 NT | |
Height | 100 mm |
Depth | 121 mm |
Leaf weight (max.) 1-leaf | 250 kg |
Distance centre door hinge-drive axis (min.-max.) 2-leaf | 1470 mm - 2800 mm |
Leaf width (min.-max.) | 690 mm - 1400 mm |
Reveal depth (max.) | 400 mm |
Door overlap (max.) | 20 mm |
Drive type | Electrohydraulic |
Opening angle (max.) | 115 ° |
Spring pre-load | EN3 - EN6 |
DIN left | Yes |
DIN right | Yes |
Transom installation opposite hinge side with link arm | Yes |
Mechanical latching action | Yes |
Electrical closing sequence control | Yes |
Disconnection from mains | Not available |
Activation delay (max.) | 10 s |
Operating voltage | 230 V |
Power rating | 300 W |
Power supply for external consumers (24 V DC) | 1200 mA |
Service temperature | -15 - 50 °C |
IP rating | IP20 |
Mode of operation | Off, Automatic, Permanently open, Shop closing, Night |
Type of function | Fully automatic |
Automatic function | Yes |
Key function | Yes |
Vestibule function | Yes |
Obstacle detection | Yes |
Automatic reversing | Yes |
Push & Go | adjustable |
Operation | Programme switch DPS |
Parameter setting | GEZEconnects (PC + Bluetooth), Service terminal ST 220 |
Standard conformity | DIN 18650, EN 16005 |
