TSA 325 NT
TSA 325 NT RC2 Automatic revolving door system with burglar resistance in accordance with resistance class 2
- Certified burglar resistance according to resistance class RC2
- The RC2 function is only enabled in night mode
- Equipped with a rod locking and reinforced profile components
- Very quiet running, low-wear direct current drive solution with a canopy height of at least 200 mm
- Precise closing of the door leaves with the side walls
- Effective insulation effect against draughts, weather and noise
- Adjustable automatic speed setting, in line with the number of people passing through
- Can be networked, and integrated into the building automation via open standard (BACnet)
- Independent error recognition and recording
- Freely configurable inputs and outputs for different functions
- Integrated, rechargeable battery for emergency opening in case of safety-relevant faults, such as power failure
Application Areas
- Three- and four-leaf door systems
- Interior and exterior doors with maximum safety requirements
- Representative building entrances with large incidence of light
- Façades with slim mullion-transom constructions
- Glass façades with the highest design standards
- Inner diameter ranging from 2500 to 3400 mm possible
- Suitable profile systems are fine-framed profile systems with ISO and mono glass
Installation situations in reference objects and videos
TSA 325 NT RC 2 + TSA 160 NT IS/TS

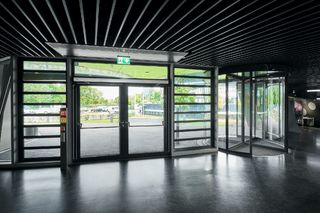

Entrance area with fully automatic revolving door TSA 325 NT RC 2 and automatic swing door drive TSA 160 NT IS/TS. © Robert Sprang / GEZE GmbH
Technical data
| TSA 325 NT RC2 | |
| Manual operation | Yes |
| With speed limiter (optional) | Yes |
| With positioning device (optional) | Yes |
| Fully automatic operation | Yes |
| Servo function | Yes |
| Suitability for escape and rescue routes | No |
| Break-out function (BO) | No |
| Inner diameter (min.) | 2500 mm |
| Inner diameter (max.) | 3400 mm |
| For 3-leaf door systems | Yes |
| For 4-leaf door systems | Yes |
| Clear passage height | 3000 mm |
| Canopy height (min.) | 200 mm |
| Side elements version | 10 mm LSG |
| Version of roof structure | optical sheet metal covering, waterproof roof with waterspout |
| Illumination | with roof variant |
| Floor covering | Entrance mat, Entrance mat, according to the customer’s request |
| Hot-air curtain system | Electric air curtain, hot water air curtain, possible, depends on the ceiling construction |
| Night-time closer layout | Inside |
| Night-time closer type | Automatic |
| Night-time closer design | 10 mm LSG |
| Lock | Manual, Rod, electromechanical |
| Door handles horizontal or vertical | Yes |
| Floor ring | Yes |
| Underfloor operator | No |
| Push pad | Yes |
| Standard conformity | DIN 18650, EN 16005 |
Downloads

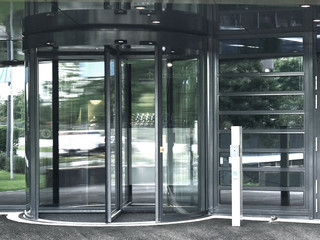

Product Image revolving door website TSA 325 NT RC2
LABELLING OBLIGATION:
© Robert Sprang / GEZE GmbH

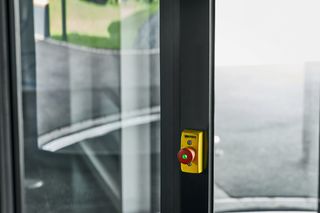

TSA 325 NT RC 2
