TSA 325 NT Automatic revolving door drive for three- or four-leaf doors with large area of application
- Very quiet running, low-wear drive solution with a canopy height of at least 200 mm
- Precise closing of the door leaves with the side walls
- Effective insulation effect against draughts, weather and noise
- Adjustable automatic speed setting, in line with the number of people passing through
- Servo function for motorized support when manually opening the door
- Manual operation of the door possible, e.g. to carry out cleaning work
- Can be networked, and integrated into the building automation via open standard (BACnet)
- Independent error recognition and recording
- Freely configurable inputs and outputs for different functions
- Integrated, rechargeable battery for emergency opening in case of safety-relevant faults, such as power failure
Application Areas
- Three- and four-leaf door systems
- Interior and exterior doors with high access frequency
- Representative building entrances with large incidence of light
- Façades with slim mullion-transom constructions
- Glass façades with the highest design standards
- Inner diameter ranging from 1800 to 3600 mm possible
- Suitable profile systems are fine-framed profile systems with ISO and mono glass
Installation situations in reference objects and videos

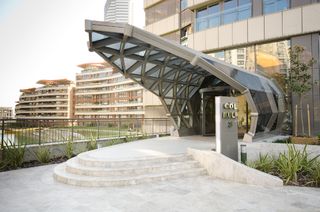

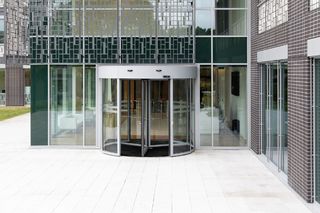

TSA 325 NT Automatic
For indoor and exterior doors with high traffic frequency.Representative building entrances with plenty of daylight. Has a high insulation effect against draught, weather and noise. The automatic speed is adjustable to fit the through traffic.Has a rechargeable battery for emergency opening in case of safety related errors such as power failure. © Tarık Kaan Muşlu / GEZE GmbH

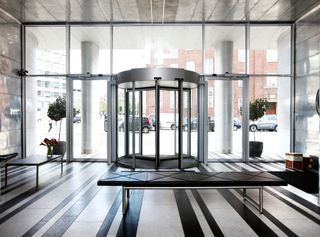

TSA 325 NT Automatic
For indoor and exterior doors with high traffic frequency.Representative building entrances with plenty of daylight. Has a high insulation effect against draught, weather and noise. The automatic speed is adjustable to fit the through traffic.Has a rechargeable battery for emergency opening in case of safety related errors such as power failure. © Truls Busch-Christensen / GEZE GmbH
TSA 325 NT Automatic
For indoor and exterior doors with high traffic frequency.Representative building entrances with plenty of daylight. Has a high insulation effect against draught, weather and noise. The automatic speed is adjustable to fit the through traffic.Has a rechargeable battery for emergency opening in case of safety related errors such as power failure. © Laurent Pardon / GEZE GmbH
TSA 325 NT Automatic
For indoor and exterior doors with high traffic frequency.Representative building entrances with plenty of daylight. Has a high insulation effect against draught, weather and noise. The automatic speed is adjustable to fit the through traffic.Has a rechargeable battery for emergency opening in case of safety related errors such as power failure. © Tarık Kaan Muşlu / GEZE GmbH

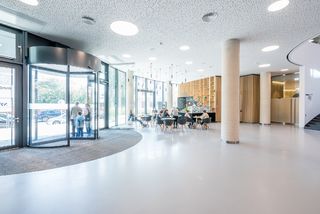

Revolving door TSA 325 A with chain drive Slimchain SYNCHRO and retractable arm drive K600T at Medicus Clinic in Wrocławiu, Poland
Automatic revolving door system for 3- or 4-leaf doors with large area of applicationwith a high insulation effect against draught, weather and noise and self-contained fault detection and logging © Fotografia Maciej Lulko / GEZE GmbH

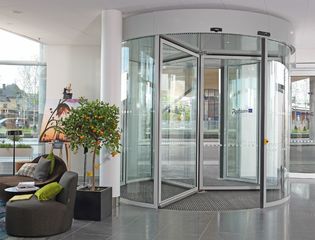

All-glass revolving door GEZE TSA 325 NT installed at the Leonberg development centre
The revolving door system for 3- or 4-leaf doors offers not only optimum ease of access but also modern design. © GEZE GmbH
All-glass revolving door GEZE TSA 325 NT installed at the Leonberg development centre
The revolving door system for 3- or 4-leaf doors offers not only optimum ease of access but also modern design. © GEZE GmbH
Revolving door with semi-automatic GEZE TSA 325 in the ÖAMTC control panel Vienna
The main and side entrance is a revolving door with semi-automatic GEZE TSA 325. Escape and fire protection door various door closer GEZE TS 5000 ISM (E-ISM, EFS). Smoke and heat extraction system in workshops RWA 110 Tandem. © Sigrid Rauchdobler / GEZE GmbH
TSA 325 NT Automatic
For interior and exterior doors with high traffic frequency. Sophisticated building entrances with plenty of daylight. Glass façades with the highest design standards. Has a high insulation effect against draughts, weather and noise. The automatic speed is adjustable to fit the amount of traffic. Has a rechargeable battery for emergency opening in case of errors that could affect safety, such as power failure. © Morten Bak / GEZE GmbH
TSA 325 NT BO
TSA 325 NT BO revolving door drive system for emergency exits with break-out function, this feature allows you to swivel the leaf and side panels in direction of emergency exit. For indoor and exterior doors with the highest safety demands. Electric locking devices integrated for the mode of operation "night mode".Has an integrated rechargeable battery for emergency opening in case of safety related errors such as power failure. © Nikolaus Grünwald / GEZE GmbH
Automatic revolving door system - TSA 325 NT + swing door drive - Slimdrive EMD, VGH Versicherungen (insurance company)
The revolving door ensures that more light comes in and that visitors have barrier-free access. This also applies to swing door drive. © Lothar Wels / GEZE GmbH
TSA 325 NT Automatic
Very smooth, low-wear drive solution. More precise closing between door leaves and side walls Effective protection against draughts, weather and noise. The automatic speed is adjustable, depending on the amount of traffic. Freely configurable inputs and outputs for different functions. Integrated rechargeable battery for emergency opening in the event of safety-relevant faults such as a power failure © Nikolaus Grünwald / GEZE GmbH
TSA 325 NT BO
TSA 325 NT BO - Automatic revolving door system for emergency exits with break-out function, this feature allows you to swivel the leaf and side panels in direction of emergency exit. The entrance to the building has plenty of natural light, the glass façades meet the highest design demands. There is an obstacle detection that stops the opening or closing process when an obstacle is noticed by touch. © Nikolaus Grünwald / GEZE GmbH
TSA 325 NT Automatic
For indoor and exterior doors with high traffic frequency.Representative building entrances with plenty of daylight. Has a high insulation effect against draught, weather and noise. The automatic speed is adjustable to fit the through traffic.Has a rechargeable battery for emergency opening in case of safety related errors such as power failure. © Lothar Wels / GEZE GmbH
TSA 325 NT Automatic
For interior and exterior doors with high traffic frequency. Sophisticated building entrances with plenty of daylight. Has a high insulation effect against draughts, weather and noise. The automatic speed is adjustable to fit the amount of traffic. Has a rechargeable battery for emergency opening in case of errors that could affect safety, such as power failure. © Robert Les / GEZE GmbH
TSA 325 NT Automatic
For indoor and exterior doors with high traffic frequency.Representative building entrances with plenty of daylight. Has a high insulation effect against draught, weather and noise. The automatic speed is adjustable to fit the through traffic.Has a rechargeable battery for emergency opening in case of safety related errors such as power failure. © Robert Les / GEZE GmbH
TSA 325 NT-series control technology
Especially high revolving door systems with heavy leaves. Special drive technology for revolving doors from GEZE ensures high door comfort. © Nicolas Tohme / GEZE GmbH

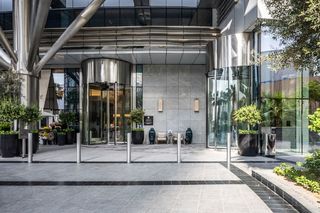

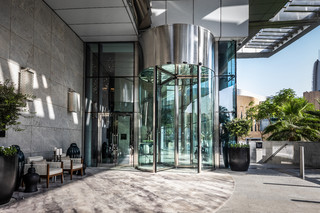

Address Hotel Dubai
Particularly tall revolving door systems with heavy leaves. Special drive technology for revolving doors from GEZE ensures excellent door control. © Nicolas Tohme / GEZE GmbH
TSA 325 NT-series control technology
Especially high revolving door systems with heavy leaves. Special drive technology for revolving doors from GEZE ensures high door comfort. © Nicolas Tohme / GEZE GmbH
TSA 325 NT-series control technology
Especially high revolving door systems with heavy leaves. Special drive technology for revolving doors from GEZE ensures high door comfort. © Nicolas Tohme / GEZE GmbH
Technical data
| TSA 325 NT | |
| Manual operation | Yes |
| With speed limiter (optional) | Yes |
| With positioning device (optional) | Yes |
| Fully automatic operation | Yes |
| Servo function | Yes |
| Suitability for escape and rescue routes | No |
| Break-out function (BO) | No |
| Inner diameter (min.) | 1800 mm |
| Inner diameter (max.) | 3600 mm |
| For 3-leaf door systems | Yes |
| For 4-leaf door systems | Yes |
| Clear passage height | 3000 mm |
| Canopy height (min.) | 200 mm |
| Side elements version | 10 mm LSG, 22 mm panel lining, 34 mm smooth-surface panel, Special glass on request |
| Version of roof structure | As dust protection roof with wood covering, optical sheet metal covering, waterproof roof with waterspout |
| Illumination | with roof variant |
| Floor covering | Entrance mat, Entrance mat, according to the customer’s request |
| Hot-air curtain system | Electric air curtain, hot water air curtain, possible, depends on the ceiling construction |
| Night-time closer layout | Inside, Outside |
| Night-time closer type | Manual, Automatic |
| Night-time closer design | 10 mm LSG, 22 mm ISO glass, 22 mm panel lining, Special glass on request |
| Lock | Manual, Rod, electromechanical |
| Door handles horizontal or vertical | Yes |
| Floor ring | Yes |
| Underfloor operator | Yes |
| Push pad | Yes |
| Standard conformity | DIN 18650, EN 16005 |
