TS 4000 EN 1-6
TS 4000 EN 1-6 with hold-open arm Overhead door closer with link arm for single leaf doors with a leaf width of up to 1400 mm
- Closing force EN1-6 with variable adjustment
- Can be used for right and left hand doors without conversion
- Hydraulic latching action which accelerates the door shortly before it is closed
- Closing speed can be individually adjusted
- Integrated back check, slows down doors that are thrown open forcefully
- Visual closing force display for easy control of the setting
Application Areas
- Right and left single-action doors
- Holds doors without smoke and fire protection requirements open
- Single-action doors up to 1400 mm leaf width

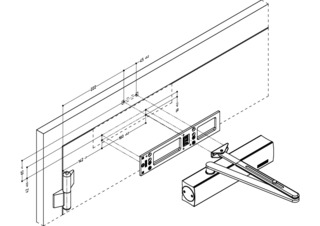

- Door leaf installation hinge side and transom installation opposite hinge side
- Door leaf installation opposite hinge side in parallel arm installation possible
Technical data
TS 4000 EN 1-6 with hold-open arm | |
Closing force in accordance with EN 1154 | EN 1 - 6 |
Leaf width (max.) | 1400 mm |
Type of installation | Door leaf installation hinge side, Door leaf installation opposite hinge side, Transom installation opposite hinge side |
Opening angle (max.) | 180 ° |
Closing force adjustable | Yes, stepless |
Adjustable closing speed | Yes |
Latching action adjustable | Yes, via link arm |
Back check integrated | Yes, hydraulically adjustable |
Position of closing force adjustment | Front |
Visual closing force display | Yes |
Hold-open function | Mechanical |
Hold-open range | 50 ° - 170 ° |
