TS 4000 EN 1-6

Closer body TS 4000 Main body for overhead door closer with link arm EN 1-6

GEZE TS 5000 Closer body Overhead door closer with guide rails for single leaf fire and smoke protection doors
  • Closing force can be variably adjusted from the front
  • Visual closing force display ensures correct setting
  • Closing seed can be adjusted from the front via valve
  • Latching action can be adjusted via link arm
  • Back check can be adjusted from the front via valve
  • Door closer, can be used for right and left hand doors
Show more
  • Minimal installation effort due to low number of individual parts and quick setting
Contact us

Closer body TS 4000

Application Areas

  • Fire and smoke protection doors
  • Right and left single-action doors
  • Single-action doors up to 1400 mm leaf width
  • Door leaf installation hinge side
  • Transom installation opposite hinge side
  • For parallel arm installation on the opposite hinge side of the door leaf

Technical data

Closer body TS 4000
Closing force in accordance with EN 1154 EN 1 - 6
Leaf width (max.) 1400 mm
Type of installation Door leaf installation hinge side, Transom installation opposite hinge side
Opening angle (max.) 180 °
Identical design for DIN left and DIN right Yes
Standard conformity EN 1154:1996/A1:2002/AC:2006
Suitability for fire protection doors Yes
Length 287 mm
Width 46 mm
Height 60 mm
Closing force adjustable Yes, stepless
Adjustable closing speed Yes
Latching action adjustable Yes, via link arm
Back check integrated Yes, hydraulically adjustable
Position of closing force adjustment Front
Visual closing force display Yes
Safety valve againts overload Yes
Thermo-control valves Yes

Downloads

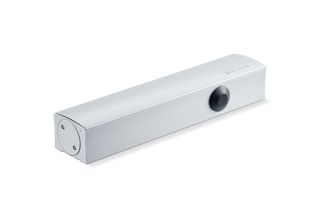

GEZE TS 5000 Closer body Product shot (675534)
LABELLING OBLIGATION:  © GEZE GmbH

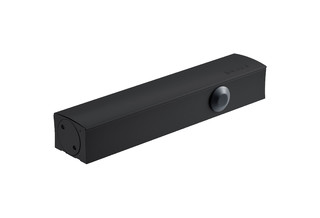

GEZE TS 5000 Closer Product shot (1802832)
LABELLING OBLIGATION:  © GEZE GmbH
Closer body TS 4000 Product data sheet EN
Installation instructions DE EN FR (763480)
Installation instructions (760628)
Certificate EN (766450)
Certificate EN (758823)
Supplementary sheet DE EN (768969)
Environmental declaration EN (760382)
Environmental declaration EN (2544798)

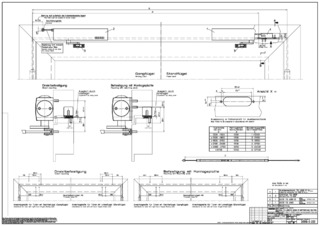

Installation drawing (760885)

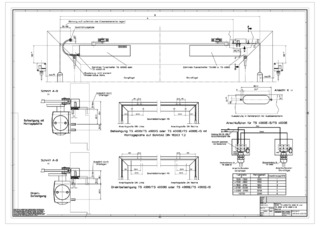

Installation drawing (769744)

Variants & Accessories

Mounting plate segmental arched door
Material

Mounting plate segmental arched door

for TS 4000, arch height max. 130 mm

Product details
Drilling template door closer
Material

Drilling template door closer

for TS 5000/TS 4000/TS 3000/TS 2000

Product details
Glass clamping shoe door closer
Material

Glass clamping shoe

For TS 5000/TS 4000

Product details
