TS 5000

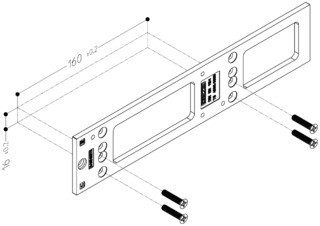

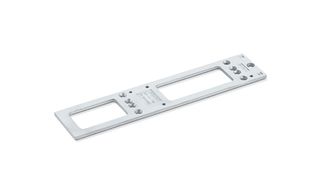

Mounting plate door closer For TS 5000 and TS 4000 with hole pattern in accordance with DIN EN 1154 Supplement 2
- With hole pattern according to DIN EN 1154 Supplement 1
For TS 5000 and TS 4000 with hole pattern in accordance with DIN EN 1154 Supplement 2
Application Areas
- Installation of the closer body in accordance with the DIN hole pattern
Technical data
Mounting plate door closer | |
Mounting plate with hole pattern in accordance with EN 1154 supplement | Yes |
