Link arm 1-leaf

TS 4000 EN 1-6 Overhead door closer with link arm for single leaf doors with a leaf width of up to 1400 mm

Door closer TS 4000 Overhead pinion door closer with link arm, Closing force size 1-6 and 5-7 acc. to
  • Closing force EN1-6 with variable adjustment
  • Can be used for right and left hand doors without conversion
  • Mechanical latching action which accelerates the door shortly before the closed position
  • Closing speed can be individually adjusted
  • Integrated back check, slows down doors that are thrown open forcefully
  • Visual closing force display for easy control of the setting
Show more
  • All functions can be set from the front (except for latching action)
Contact us

TS 4000 EN 1-6

Application Areas

  • Fire and smoke protection doors
  • Right and left single-action doors
  • Single-action doors up to 1400 mm leaf width
  • Door leaf installation hinge side and transom installation opposite hinge side
  • Door leaf installation opposite hinge side in parallel arm installation possible

Technical data

TS 4000 EN 1-6
Closing force in accordance with EN 1154 EN 1 - 6
Barrier-free in accordance with DIN 18040 up to leaf width (max.) in mm 1100 mm
Leaf width (max.) 1400 mm
Type of installation Door leaf installation hinge side, Door leaf installation opposite hinge side, Transom installation opposite hinge side
Opening angle (max.) 180 °
Suitability for fire protection doors Yes
Closing force adjustable Yes, stepless
Adjustable closing speed Yes
Latching action adjustable Yes, via link arm
Back check integrated Yes, hydraulically adjustable
Position of closing force adjustment Front
Visual closing force display Yes
Hold-open function Optional

Downloads

Door closer TS 4000

LABELLING OBLIGATION:  © GEZE GmbH

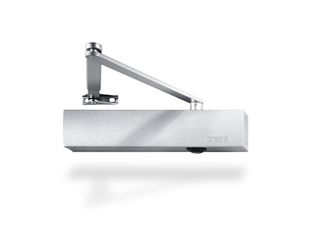

Product shot (44795)

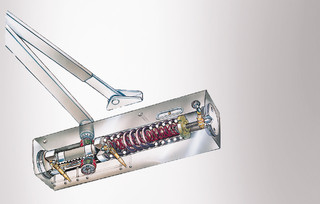

TS 4000 with pinion door closer with link arm

LABELLING OBLIGATION:  © GEZE GmbH

Product shot (47482)

Variants & Accessories

Link arm TS 4000/2000
Parts

Link arm TS 4000 / 2000

Standard link arm

Product details
Link arm TS 4000/2000 extended
Parts

Link arm TS 4000 / 2000 elongated

For transom installation with reveal depth between 70-170 mm

Product details
GEZE TS 5000 Closer body
Parts

Closer body TS 4000

Main body for overhead door closer with link arm EN 1-6

Product details
