TS 5000 R-ISM/0

TS 5000 R-ISM/0 ECline Overhead door closer system with guide rail for double leaf doors with integrated closing sequence control and smoke switch without electric hold-open device

Door closer system TS 5000 R-ISM/0 SoftClose / ECline with HM Overhead door closer with guide rail system for double leaf doors with closing sequence control, smoke switch and integrated back check, which brakes heavily applied doors.
  • System of two TS 5000 ECline door closers, R-ISM/0 guide rail without electric hold-open device
  • Closing force of EN3-5 with variable adjustment
  • Operating voltage 230 V AC
  • Can be used for right and left hand doors without conversion
  • Closing sequence control holds the active leaf in the waiting position until the passive leaf is closed
  • Integrated smoke switch control unit, whose signal closes the door automatically in the event of a fire
Show more
  • Smoke switch with contamination indicator and adaption of the alarm threshold
  • Additional smoke detectors can be fitted
  • Hydraulic latching action which accelerates the door shortly before it is closed
  • Closing speed can be individually adjusted
  • Integrated back check, slows down doors that are thrown open forcefully
  • Visual closing force display for easy control of the setting
  • All functions can be adjusted from the front
Contact us

TS 5000 R-ISM/0 ECline

Application Areas

  • Fire and smoke protection doors
  • Right and left double leaf single-action doors
  • Symmetrical and asymmetrical division of door possible
  • Single-action doors with hinge clearance up to 2500 mm
  • Minimum hinge clearance 1500 mm, minimum width of the active leaf 875 mm and of the passive leaf 400 mm
  • Hold-open systems with hold-open magnet (as accessory) and smoke switch (integrated into the guide rail)
  • Door leaf installation hinge side

Technical data

TS 5000 R-ISM/0 ECline
Barrier-free in accordance with DIN 18040 up to leaf width (max.) in mm 1250 mm
Leaf width (max.) 1250 mm
Type of installation Door leaf installation hinge side
Opening angle (max.) 180 °
Input voltage 230 V AC
Frequency of supply voltage 50 Hz
Minimum hinge clearance 1500 mm
Minimum passive leaf width 400 mm
Suitability for fire protection doors Yes
Closing force adjustable Yes, stepless
Adjustable closing speed Yes
Latching action adjustable Yes, via valve
Back check integrated Yes, hydraulically adjustable
Position of closing force adjustment Front
Visual closing force display Yes
Hold-open function Electrical
Hold-open device on the active leaf / passive leaf Optional / Optional
Hold-open range 180 °
Smoke switch integrated Yes
Closing sequence control integrated Yes

Downloads

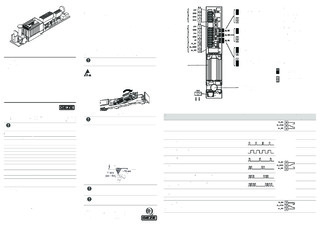

Door closer system TS 5000 R-ISM/0 SoftClose / ECline with HM

LABELLING OBLIGATION:  © GEZE GmbH

Product shot (47699)

Variants & Accessories

Magnetic counterplate
Parts

Magnetic counterplate basic model

Standard version, rubber support

Product details
Magnetic counterplate with spring buffer
Parts

Magnetic counterplate spring buffer

Version with spring buffer

Product details
Magnetic counterplate with joint
Parts

Magnetic counterplate joint

Version with adjustable joint

Product details
