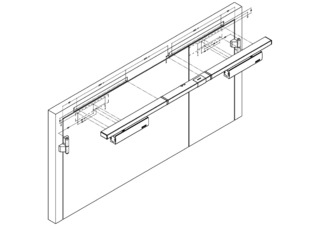

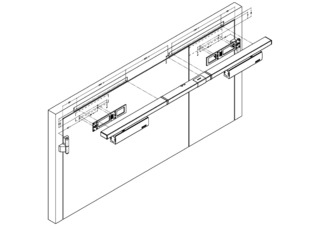

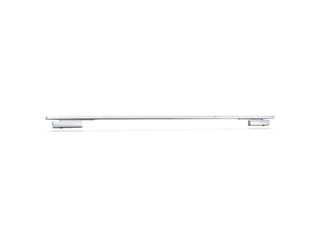

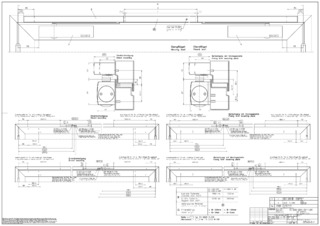

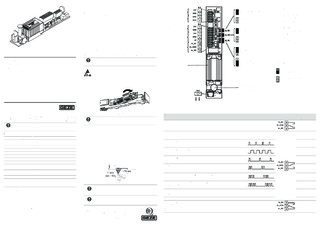

TS 5000 R-ISM Overhead door closer system with guide rail for double leaf doors with closing sequence control and smoke switch
- System comprising two door closers TS 5000 and an R-ISM guide rail
- Closing force of EN2-6 with variable adjustment
- Operating voltage 230 V AC
- Can be used for right and left hand doors without conversion
- Closing sequence control holds the active leaf in the waiting position until the passive leaf is closed
- Integrated smoke switch control unit, whose signal closes the door automatically in the event of a fire
- Smoke switch with contamination indicator and adaption of the alarm threshold
- Additional smoke detectors can be fitted
- Electric hold-open device in the guide rail with hold-open area of 80°-130°
- Hydraulic latching action which accelerates the door shortly before it is closed
- Closing speed can be individually adjusted
- Integrated back check, slows down doors that are thrown open forcefully
- Visual closing force display for easy control of the setting
- All functions can be adjusted from the front
Application Areas
- Fire and smoke protection doors
- Double leaf single-action doors
- Symmetrical and asymmetrical division of door possible
- Single-action doors up to 2800 mm hinge clearance and 1400 mm leaf width, overlength up to 3200 mm
- Minimum hinge clearance 1500 mm, minimum width of the active leaf 875 mm and of the passive leaf 400 mm
- Door leaf installation hinge side
Installation situations in reference objects and videos

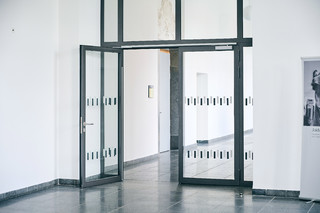

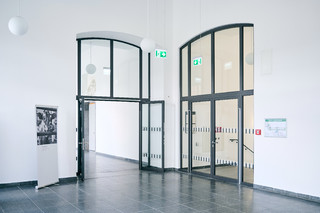

TS 5000 R-ISM, Uni Schloss Mannheim
Door closer TS 5000 R-ISM on a 2-leaf door at the University of Mannheim © Nico Walke / GEZE GmbH
TS 5000 R-ISM, Uni Schloss Mannheim
Door closer TS 5000 R-ISM on a 2-leaf door at the University of Mannheim © Nico Walke / GEZE GmbH

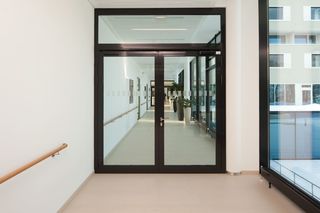

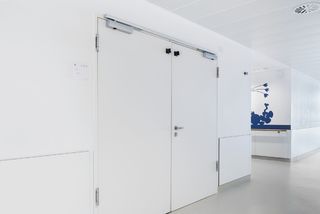

Fire protection door with TS 5000 R-ISM and hold-open function via hold-open magnet, installed at the Olgahospital in Stuttgart.
Fire section door with TS 5000 R-ISM, overhead door closer with guide rail for double leaf doors with closing sequence control and smoke switch, hold-open function via hold-open magnet. © Jürgen Pollak / GEZE GmbH

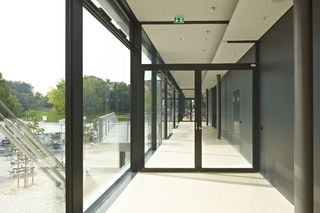

Overhead door closer with guide rail TS 5000 R-ISM, installed at Coubertin in Munich.
Fire section door with TS 5000 R-ISM, overhead door closer with guide rail for double leaf doors with closing sequence control and smoke switch. © Robert Sprang / GEZE GmbH

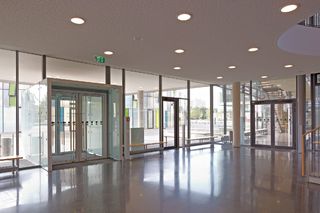

Entrance vocational school centre with swing doors and emergency exit
The interaction of the TS 5000, Slimdrive SD Servo and TS 5000 R IS results in the optimum ease of access as well as the maximum accessibility. © Robert Sprang / GEZE GmbH

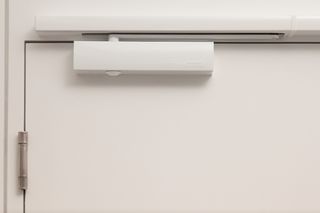

Overhead door closer with guide rail TS 5000 R-ISM
TS 5000 R-ISM, Overhead door closer with guide rail system for double leaf doors with closing sequence control and smoke switch, installed at GEZE GmbH in Leonberg. © Dirk Wilhelmy / GEZE GmbH
Overhead door closer with guide rail TS 5000 R-ISM
TS 5000 R-ISM, Overhead door closer with guide rail system for double leaf doors with closing sequence control and smoke switch, installed at GEZE GmbH in Leonberg. © Dirk Wilhelmy / GEZE GmbH

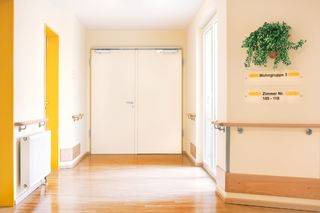

Overhead door closer with guide rail TS 5000 R-ISM, installed at the Integra care home in Ronnenberg.
Fire section door with TS 5000 R-ISM, overhead door closer with guide rail for double leaf doors with closing sequence control and smoke switch. © Lothar Wels / GEZE GmbH

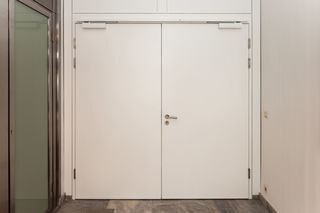

Overhead door closer with guide rail TS 5000 R-ISM, Showroom Leonberg
TS 5000 R-ISM, Overhead door closer with guide rail system for double leaf doors with closing sequence control and smoke switch, installed in the showroom of GEZE GmbH in Leonberg. © GEZE GmbH

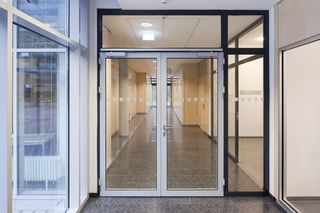

TS 5000 R-ISM overhead door closer with guide rail, installed at the Olgahospital in Stuttgart.
Fire section door with TS 5000 R-ISM, overhead door closer with guide rail for double leaf doors with closing sequence control and smoke switch. © Jürgen Pollak / GEZE GmbH
Overhead door closer with guide rail TS 5000 R-ISM, installed at the Augustinum in Stuttgart.
Fire section door with TS 5000 R-ISM, overhead door closer with guide rail for double leaf doors with closing sequence control and smoke switch. © Dirk Wilhelmy / GEZE GmbH
Overhead door closer with guide rail TS 5000 R-ISM
Fire section door with TS 5000 R-ISM, overhead door closer with guide rail for double leaf doors with closing sequence control and smoke switch, installed in the vocational school in Friedrichshafen. © Dirk Wilhelmy / GEZE GmbH
Overhead door closer with guide rail TS 5000 R-ISM, installed at the Olgahospital in Stuttgart.
Fire section door with TS 5000 R-ISM, overhead door closer with guide rail for double leaf doors with closing sequence control and smoke switch. © Jürgen Pollak / GEZE GmbH
Technical data
| TS 5000 R-ISM | |
| Closing force in accordance with EN 1154 | EN 2 - 6 |
| Barrier-free in accordance with DIN 18040 up to leaf width (max.) in mm | 1400 mm |
| Leaf width (max.) | 1400 mm |
| Type of installation | Door leaf installation hinge side |
| Opening angle (max.) | 180 ° |
| Input voltage | 230 V AC |
| Frequency of supply voltage | 50 Hz |
| Minimum hinge clearance | 1500 mm |
| Minimum passive leaf width | 400 mm |
| Suitability for fire protection doors | Yes |
| Closing force adjustable | Yes, stepless |
| Adjustable closing speed | Yes |
| Latching action adjustable | Yes, via valve |
| Back check integrated | Yes, hydraulically adjustable |
| Position of closing force adjustment | Front |
| Visual closing force display | Yes |
| Hold-open function | Electrical |
| Hold-open device on the active leaf / passive leaf | Yes / Yes |
| Hold-open range | 80 ° - 130 ° |
| Smoke switch integrated | Yes |
| Closing sequence control integrated | Yes |
