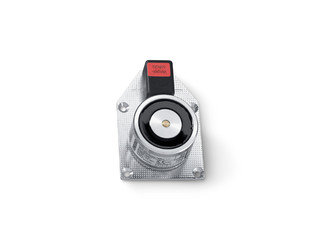

TS 5000 ISM

Hold-open magnet wall installation For wall installation with base plate

Hold-open magnet wall installation Accessories Door technology
  • High retention force of 490N
  • Concealed line-feed and robust design
Contact us

For wall installation with base plate

Application Areas

  • Use for hold-open angles up to 180°, ideal for exact holding open
  • Use in harsh environments such as industrial buildings
  • Places of public assembly and highly frequented sports venues
  • Approved for GEZE hold-open systems
  • Wall mounting

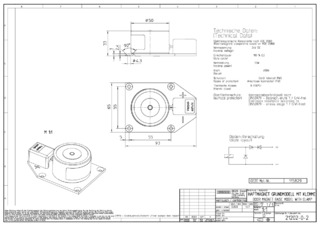

Technical data

Hold-open magnet wall installation
Dimensions 93 x 65 x 33 mm
IP rating IP65 Magnet; IP20 connection
Type of installation Surface-mounted installation
Line-feed Top, Below
Area of application Inside

Variants & Accessories
