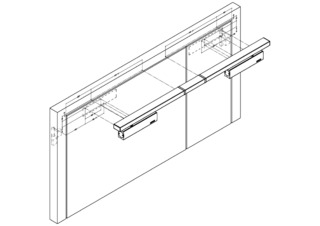

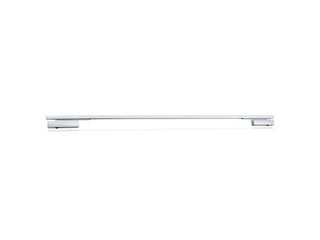

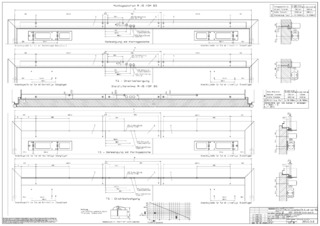

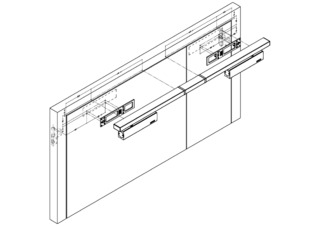

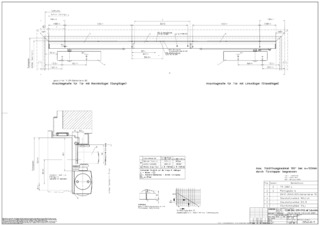

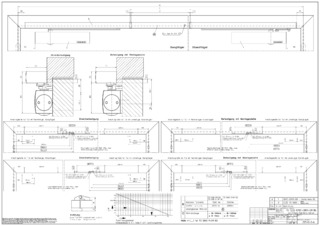

TS 5000 L-ISM Overhead door closer system with guide rail on opposite hinge side for double leaf doors up to 2800 mm hinge clearance with integrated closing sequence control
- System comprising two door closers TS 5000 L and an ISM guide rail for the opposite hinge side
- Closing force of EN 2-6 with variable adjustment
- Can be used for right and left hand doors without conversion
- Closing sequence control holds the active leaf in the waiting position until the passive leaf is closed
- Hydraulic latching action which accelerates the door shortly before it is closed
- Closing speed can be individually adjusted
- Integrated back check, slows down doors that are thrown open forcefully
- Visual closing force display for easy control of the setting
- All functions can be adjusted from the front
Application Areas
- Fire and smoke protection doors
- Double leaf single-action doors
- Symmetrical and asymmetrical division of door possible
- Single-action doors up to 2800 mm hinge clearance and 1400 mm leaf width
- Minimum hinge clearance 1360 mm, minimum width of the passive leaf 380 mm
- Panic function available on the active leaf
- Door leaf installation opposite hinge side
Installation situations in reference objects and videos

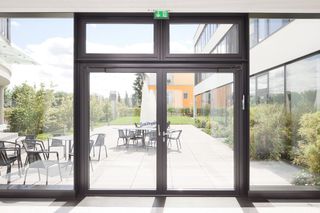

Overhead door closer with guide rail TS 5000 L-ISM, installed at the Rheinlandhaus in Cologne.
Overhead door closer system with guide rail, for opposite hinge side, for double leaf doors with anti-panic function and closing sequence control. © Lothar Wels / GEZE GmbH

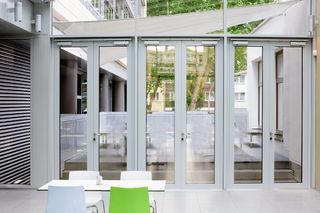

Overhead door closer with guide rail TS 5000 L-ISM, installed at City Point in Fürstenfeldbruck.
Overhead door closer system with guide rail, for opposite hinge side, for double leaf doors with anti-panic function and closing sequence control. © Robert Sprang / GEZE GmbH

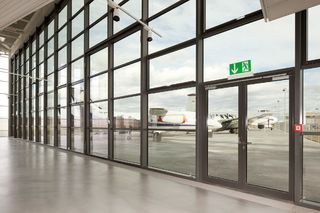

TS 5000 L-ISM overhead door closer with guide rail, installed at the Häussler Global Office GmbH in Stuttgart.
Overhead door closer system with guide rail, for opposite hinge side, for double leaf doors with anti-panic function and closing sequence control. © Dirk Wilhelmy / GEZE GmbH
Overhead door closer with guide rail TS 5000 L-ISM, installed at Unilever in Hamburg.
Overhead door closer system with guide rail, for opposite hinge side, for double leaf doors with anti-panic function and closing sequence control. © Jochen Stüber / GEZE GmbH

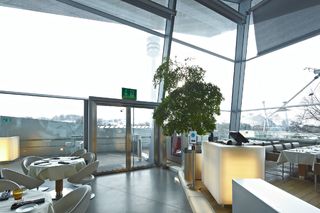

Overhead door closer with guide rail TS 5000 L-ISM, installed at BMW Welt in Munich.
Overhead door closer system with guide rail, for opposite hinge side, for double leaf doors with anti-panic function and closing sequence control. © Robert Sprang / GEZE GmbH
Overhead door closer with guide rail TS 5000 L-ISM, installed the Dorniermuseum in Friedrichshafen.
Overhead door closer system with guide rail, for opposite hinge side, for double leaf doors with anti-panic function and closing sequence control. © Dirk Wilhelmy / GEZE GmbH

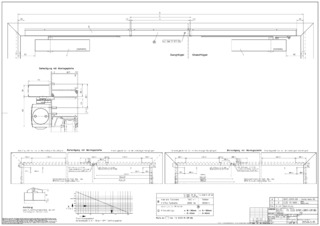

Technical data
| TS 5000 L-ISM | |
| Barrier-free in accordance with DIN 18040 up to leaf width (max.) in mm | 1100 mm |
| Leaf width (max.) | 1400 mm |
| Type of installation | Door leaf installation opposite hinge side |
| Opening angle (max.) | 130 ° |
| Minimum hinge clearance | 1360 mm |
| Minimum passive leaf width | 380 mm |
| Suitability for fire protection doors | Yes |
| Closing force adjustable | Yes, stepless |
| Adjustable closing speed | Yes |
| Latching action adjustable | Yes, via valve |
| Back check integrated | Yes, hydraulically adjustable |
| Position of closing force adjustment | Front |
| Visual closing force display | Yes |
| Hold-open function | Optional |
| Closing sequence control integrated | Yes |
