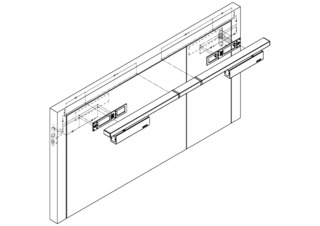

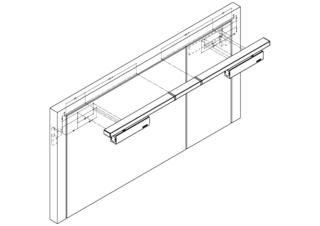

TS 5000 L-ISM VPK Overhead door closer system with guide rail, for opposite hinge side, for double leaf doors with anti-panic function and closing sequence control
- Complete package with two TS 5000 L and TS 5000 L-IS door closers with ISM guide rail
- Closing force of EN2-6 with variable adjustment
- Can be used for right and left hand doors without conversion
- Full panic function on both door leaves up to x dimension 110 mm
- Closing sequence control holds the active leaf in the waiting position until the passive leaf is closed
- Hydraulic latching action which accelerates the door shortly before it is closed
- Closing speed can be individually adjusted
- Integrated back check, slows down doors that are thrown open forcefully
- Visual closing force display for easy control of the setting
- All functions can be adjusted from the front
Application Areas
- Fire and smoke protection doors
- Double leaf single-action doors with panic function
- Symmetrical and asymmetrical division of door possible
- Single-action doors up to 2800 mm hinge clearance and 1400 mm leaf width, for door weights up to 180 kg
- Door leaf installation opposite hinge side
Installation situations in reference objects and videos
TS 5000 L-ISM VPK

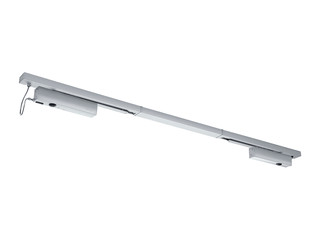

Exterior view TS 5000 L-ISM VPK on a 2-leaf door. © Lorenz Frey / GEZE GmbH
Emergency exit Tissot Arena Biel with RWA K 600

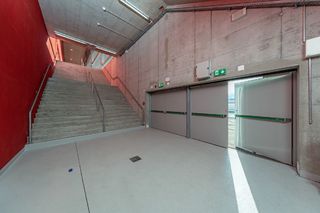

Staircase and emergency exit of the Tissot Arena Biel with retractable arm drive RWA K 600 on double leaf door with closing sequence control. © Lorenz Frey / GEZE GmbH
TS 5000 L-ISM VPK
Installation situation TS 5000 L-ISM VPK in the Tissot arena, Biel. © Lorenz Frey / GEZE GmbH

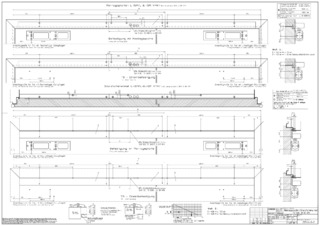

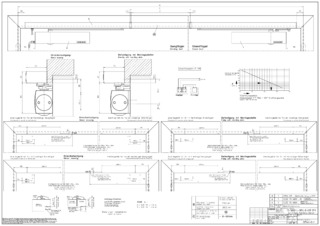

Technical data
| TS 5000 L-ISM VPK | |
| Barrier-free in accordance with DIN 18040 up to leaf width (max.) in mm | 1100 mm |
| Leaf width (max.) | 1400 mm |
| Type of installation | Door leaf installation opposite hinge side |
| Opening angle (max.) | 130 ° |
| Minimum hinge clearance | 1300 mm |
| Minimum passive leaf width | 380 mm |
| Suitability for fire protection doors | Yes |
| Closing force adjustable | Yes, stepless |
| Adjustable closing speed | Yes |
| Latching action adjustable | Yes, via valve |
| Back check integrated | Yes, hydraulically adjustable |
| Position of closing force adjustment | Front |
| Visual closing force display | Yes |
| Closing sequence control integrated | Yes |
