TS 5000

TS 5000 L Overhead door closer with guide rail, for opposite hinge side, for single leaf doors of up to 1400 mm leaf width

TS 5000 door closer TS 5000, overhead door closer with guide rail for 1-leaf doors
  • Closing force of EN2-6 with variable adjustment
  • Can be used for right and left hand doors without conversion
  • Hydraulic latching action which accelerates the door shortly before it is closed
  • Closing speed can be individually adjusted
  • Integrated back check, slows down doors that are thrown open forcefully
  • Visual closing force display for easy control of the setting
Show more
  • All functions can be adjusted from the front
Contact us

TS 5000 L

Application Areas

  • Fire and smoke protection doors
  • Right and left single-action doors
  • Single-action doors up to 1400 mm leaf width
  • Door leaf installation opposite hinge side and transom installation hinge side

Installation situations in reference objects and videos

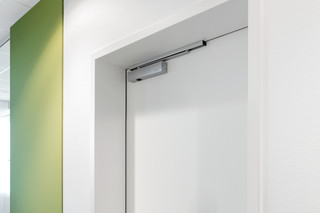

Discreet design for contemporary swing doors: the GEZE TS 5000 door closer The TS 5000 reliably closes doors and integrates well into the architecture

Discreet design for contemporary swing doors: the GEZE TS 5000 door closer

The TS 5000 reliably closes doors and integrates well into the architecture © Nicolas Thome / GEZE GmbH

1/2

Technical data

TS 5000 L
Closing force in accordance with EN 1154 EN 2 - 6
Barrier-free in accordance with DIN 18040 up to leaf width (max.) in mm 1100 mm
Leaf width (max.) 1400 mm
Type of installation Transom installation hinge side, Door leaf installation opposite hinge side
Opening angle (max.) 120 °
Suitability for fire protection doors Yes
Closing force adjustable Yes, stepless
Adjustable closing speed Yes
Latching action adjustable Yes, via valve
Back check integrated Yes, hydraulically adjustable
Position of closing force adjustment Front
Visual closing force display Yes
Hold-open function Optional

Downloads

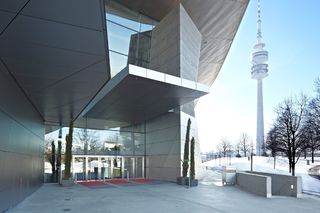

Door closer - TS 5000 L + Swing door drive - TSA 160 NT at BMW Welt

LABELLING OBLIGATION:  © Robert Sprang / GEZE GmbH

Installation situation (45484)

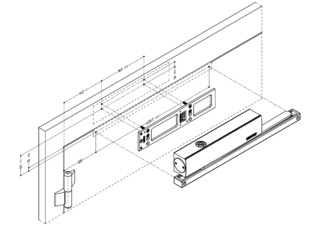

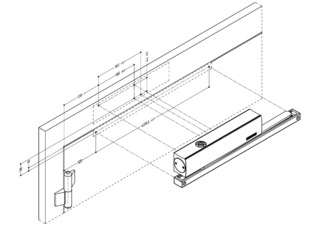

GEZE TS 5000 L and guide rail BG lintel mounting TS 3/5000 L

LABELLING OBLIGATION:  © GEZE GmbH

Installation situation (1610740)

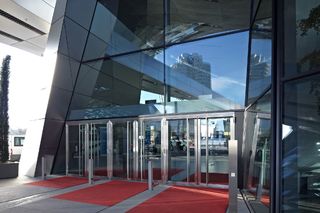

Overhead door closer system with guide rail - TS 5000 L + swing door drive TSA 160 NT, BMW Welt

LABELLING OBLIGATION:  © Robert Sprang / GEZE GmbH

Installation situation (45108)

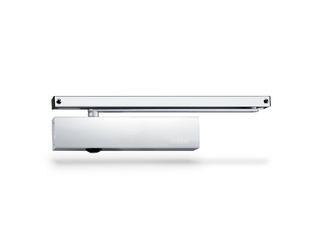

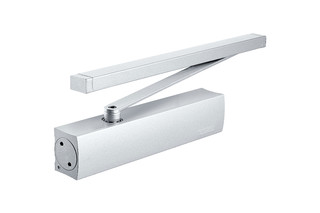

TS 5000 door closer

LABELLING OBLIGATION:  © GEZE GmbH

Product shot (46511)
Door closer TS 5000, vertically adjustable guide rail

LABELLING OBLIGATION:  © GEZE GmbH

Product shot (842395)

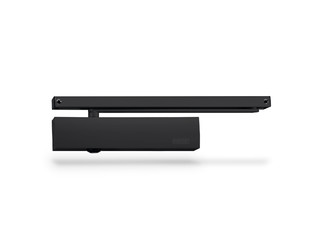

TS 5000 door closer

LABELLING OBLIGATION:  © GEZE GmbH

Product shot (1378678)

Variants & Accessories

Guide rail TS 5000/TS 3000 vertically adjustable
Parts

Guide rail TS 5000 / 3000 vertically adjustable

With height compensation +/- 2 mm and lever

Product details
Guide rail TS 5000/TS 3000 vertically adjustable
Parts

Guide rail BG TS 5000 / 3000 vertically adjustable

With height compensation +/- 2 mm, with lever, opposite hinge side

Product details
Guide rail TS 3/5000 BG
Parts

Guide rail TS 5000 / 3000

Standard guide rail with lever

Product details
