TS 3000 EC

T-Stop guide rail BG TS 3000 / 5000 With opening restrictor and lever, opposite hinge side

T-Stop guide rail BG
  • Easy to replace with the standard guide rail for opposite hinge side
  • Saves time because no floor mounted door stopper needs to be installed
  • With screwed slide block
Contact us

T-Stop guide rail BG TS 3000 / 5000

Application Areas

  • Single leaf doors
  • Installation on the opposite hinge side
  • Right and left single-action doors
  • For opening restriction without door stopper

Technical data

T-Stop guide rail BG TS 3000 / 5000
Length 452.5 mm
Width 33 mm
Height 30 mm
Opening restrictor integrated Yes
Hold-open function Optional
Hold-open device can be overridden Yes

Downloads

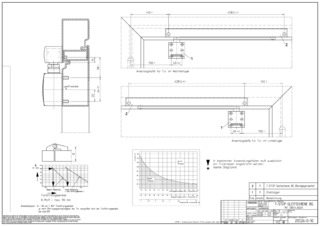

T-Stop guide rail opposite hinge side with pivot bearing (.dxf | 349 KB)

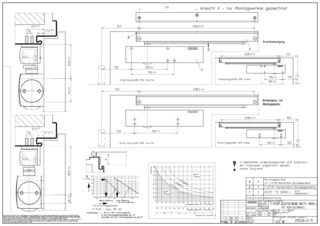

TS 5000 L door leaf opposite hinge side with T-Stop guide rail (.dxf | 661 KB)

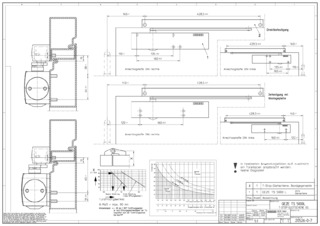

TS 5000 L Door leaf opposite hinge side, T-Stop guide rail with lintel casing bracket (.dxf | 663 KB)
T-Stop guide rail BG

LABELLING OBLIGATION:  © GEZE GmbH

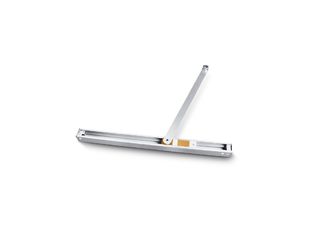

Product shot (46280)

Variants & Accessories

Floor-mounted pivot bearing T-stop guide rail
Accessories

Pivot bearing T-Stop

For opening restriction or hold-open of doors without door closer

Product details
GEZE mechanical hold-open unit
Accessories

Mechanical hold-open unit

For standard/T-Stop/Boxer 20.7 mm guide rail

Product details
