TS 3000 EC

T-Stop guide rail TS 3000/ 5000 With opening restrictor and lever

T-Stop guide rail BG
  • Easy to replace with the standard guide rail
  • Saves time because no floor mounted door stopper needs to be installed
  • With screwed slide block
  • Pivot bearing T-Stop
Contact us

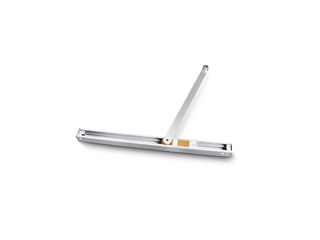

T-Stop guide rail TS 3000/ 5000

Application Areas

  • Single leaf doors
  • Installation on hinge side
  • Right and left single-action doors
  • For opening restriction without door stopper

Technical data

T-Stop guide rail TS 3000/ 5000
Length 452.5 mm
Width 33 mm
Height 30 mm

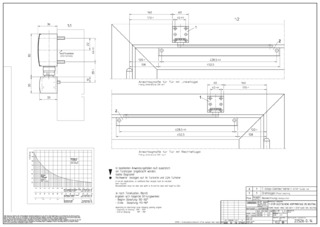

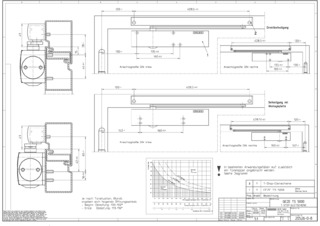

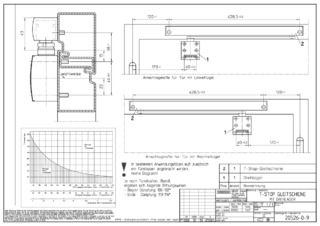

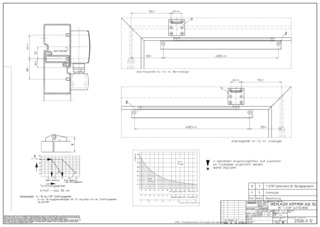

Opening restrictor integrated Yes
Hold-open function Optional

Downloads

Variants & Accessories

Floor-mounted pivot bearing T-stop guide rail
Accessories

Pivot bearing T-Stop

For opening restriction or hold-open of doors without door closer

Product details
GEZE mechanical hold-open unit
Accessories

Mechanical hold-open unit

For standard/T-Stop/Boxer 20.7 mm guide rail

Product details
