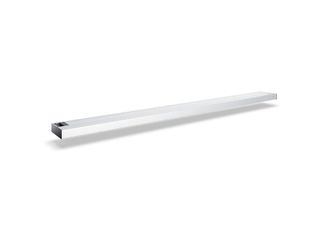

Slimdrive SLT Automatic telescopic sliding door system for use in narrow glass façades
- Two parallel-tracks guide the door leaves and thus achieve high opening widths
- Very quiet running, low-wear direct current drive with a height of only 7 cm
- Can be networked, and integrated into the building automation via open standard (BACnet)
- Independent error recognition and recording
- Freely configurable inputs and outputs for different functions
- Integrated battery for emergency opening and closing in the event of a power failure
Application Areas
- Double and four-leaf sliding door systems
- In confined spaces with small clear opening width or little space next to the door opening
- Interior and exterior doors with high access frequency
- Opening widths of 1000 to 3600 mm possible
- Door leaf weights up to 80 kg per leaf
Installation situations in reference objects and videos

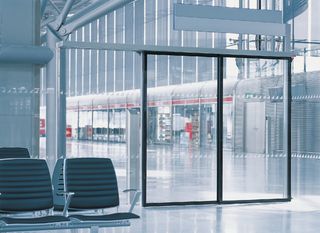

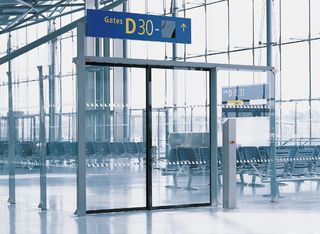

Automatic sliding door drive Slimdrive SLT at Cologne-Bonn airport
Automatic telescopic sliding door system for use in narrowest glass façades with two parallel surface mounted tracks, the door leaves lead and achieve high opening widths. © Martin Jakob / GEZE GmbH
Automatic sliding door drive Slimdrive SLT at Cologne-Bonn airport
Automatic telescopic sliding door system for use in narrowest glass façades with two parallel surface mounted tracks, the door leaves lead and achieve high opening widths. © Martin Jakob / GEZE GmbH
Sliding door solutions from GEZE, product video
ECdrive T2, Slimdrive and Powerdrive: Tailored, efficient and open to the demands of tomorrow.
Technical data
| Slimdrive SLT | |
| For 2-leaf door systems | Yes |
| For 4-leaf door systems | Yes |
| Fine-framed insulating glass | Yes |
| Height | 70 mm |
| Depth | 247 mm |
| Leaf weight (max.) 2-leaf | 80 kg |
| Leaf weight (max.) 4-leaf | 70 kg |
| Opening width 2-leaf | 1000 mm - 3000 mm |
| Opening width 4-leaf | 1600 mm - 3600 mm |
| Service temperature | -15 - 50 °C |
| IP rating | IP20 |
| Disconnection from mains | Main switch in the drive |
| Standard conformity | DIN 18650, DIN EN ISO 13849: Performance Level D, EN 16005 |
