Slimdrive SL inclined Automatic linear sliding door system for use on inclined glass façades
- Freely-selectable inclination angle up to 9.9° (larger angles available upon request)
- Continuous floor guide
- Very quiet running, low-wear direct current drive with a height of only 7 cm
- Integrated active infrared detector
- Can be networked, and integrated into the building automation via open standard (BACnet)
- Independent error recognition and recording
- Adjustment options for all door movement parameters
- Freely configurable inputs and outputs for different functions
- Integrated, rechargeable battery for emergency opening in case of safety-relevant faults, such as power failure
- Various mechanical and electrical locks are optionally available
Application Areas
- Double leaf sliding door systems
- Use in inclined glass façades in mullion-transom constructions
- Interior and exterior doors with high access frequency
- Opening widths of up to 2500 mm are possible.
- Door leaf weights of up to 100 kg per leaf, depending on inclination angle
- Suitable profile systems are fine-framed profile systems with ISO and mono glass
Installation situations in reference objects and videos

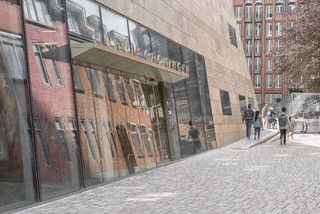

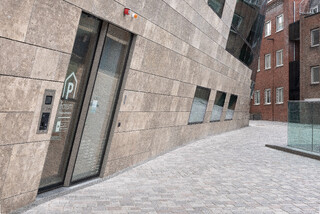

Inclined entrance to Forum Groningen with GEZE Slimdrive SL
Customized sliding door systems for inclined façade at the Forum Groningen © Zweitze Korten

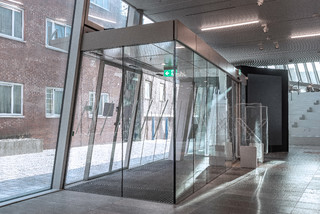

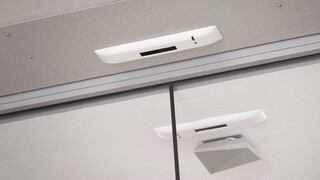

Combination of GEZE Slimdrive SL inclined and Slimdrive SL RC2 in the entrance area of the Forum Groningen
The sliding door with Slimdrive SL-RC2 increases burglary protection. © Zweitze Korten

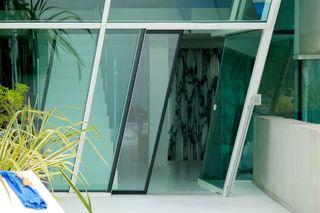

Automatic sliding door drive Slimdrive SL inclined in the Palacio de las Artes Opera and Culture House in Valencia
Automatic linear sliding door system for use on inclined glass façades © GEZE GmbH

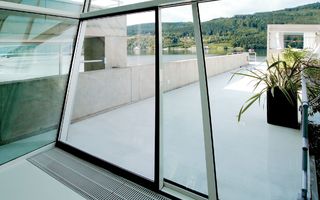

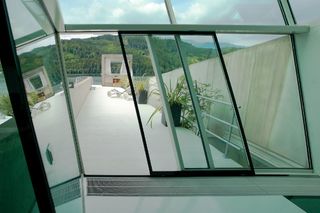

Automatic sliding door drive Slimdrive SL inclined in Villa Soravia, Millstatt Austria
Automatic linear sliding door system for use on inclined glass façades © Helmut Kolaric / GEZE GmbH

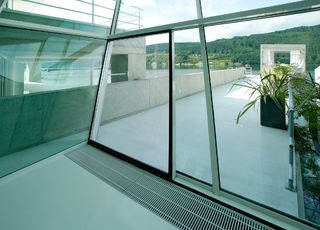

Automatic sliding door drive Slimdrive SL inclined in Villa Soravia, Millstatt Austria
Automatic linear sliding door system for use on inclined glass façades © Helmut Kolaric / GEZE GmbH
Automatic sliding door drive Slimdrive SL inclined in Villa Soravia in Millstatt Austria
Automatic linear sliding door system for use on inclined glass façades © Helmut Kolaric / GEZE GmbH
Automatic sliding door drive Slimdrive SL inclined
Automatic sliding door drive Slimdrive SL inclined in the Palacio de las Artes Opera and Culture House in Valencia © Pau Esculies / GEZE GmbH
Automatic sliding door drive Slimdrive SL inclined in the Palacio de las Artes Opera and Culture House in Valencia
Automatic linear sliding door system for use on inclined glass façades © Pau Esculies / GEZE GmbH
