Slimdrive SL-BO Automatic sliding door system for escape and rescue routes with break-out function
- BO function allows the leaves and side elements to swing open in the direction of escape
- Integrated electrical lockings for "night" mode of operation
- Very quiet running, low-wear direct current drive with a height of only 7 cm
- Can be networked, and integrated into the building automation via open standard (BACnet)
- Independent error recognition and recording
- Freely configurable inputs and outputs for different functions
- Integrated, rechargeable battery for emergency opening in case of safety-relevant faults, such as power failure
- Self-cleaning roller carriage reduces maintenance effort and costs
- Various mechanical and electrical locks are optionally available
Automatic sliding door system for escape and rescue routes with break-out function
Application Areas
- Single and double leaf sliding door systems along escape and rescue routes
- Interior and exterior doors with maximum safety requirements
- Façades with slim post-rail constructions
- Opening widths of 900 to 2500 mm possible
- Door leaf weights of up to 100 kg per leaf
- Suitable profile systems are fine-framed profile systems with ISO and mono glass
Installation situations in reference objects and videos

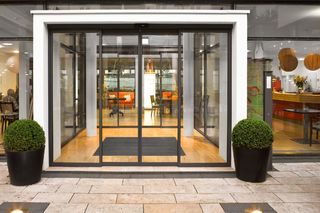

Automatic sliding door drive SL-BO, installed at AWO
Automatic sliding door system for emergency exits with break-out function © Lothar Wels / GEZE GmbH

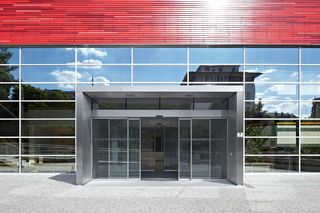

Automatic sliding door drive Slimdrive SL-BO in the auditorium centre of the clinic on the right of the Isar in Munich
Automatic sliding door system for emergency exits with break-out function © Robert Sprang / GEZE GmbH

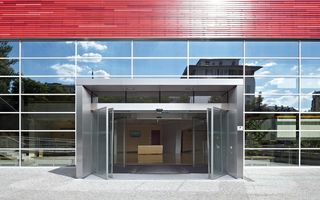

Slimdrive SL-BO, Auditorium centre Rechts der Isar Hospital, Munich
Automatic sliding door system for emergency exits with break-out function © Robert Sprang / GEZE GmbH

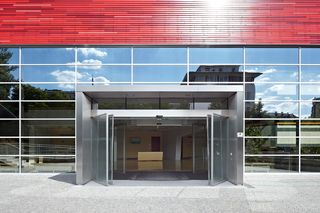

Automatic sliding door drive Slimdrive SL-BO in the auditorium centre of the clinic on the right of the Isar in Munich
Automatic sliding door system for emergency exits with break-out function © Robert Sprang / GEZE GmbH

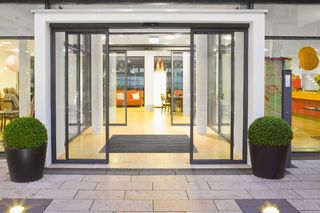

Automatic sliding door drive SL-BO, installed at the AWO in Cologne
Automatic sliding door system for emergency exits with break-out function © Lothar Wels / GEZE GmbH

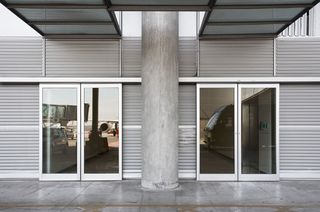

Automatic sliding door drive Slimdrive SL-BO, installed at Madrid-Barajas airport
Automatic sliding door system for emergency exits with break-out function © Rafael Vargas / GEZE GmbH
Sliding door solutions from GEZE, product video
ECdrive T2, Slimdrive and Powerdrive: Tailored, efficient and open to the demands of tomorrow.
Technical data
| Slimdrive SL-BO | |
| For 1-leaf door systems | Yes |
| For 2-leaf door systems | Yes |
| Fine-framed insulating glass | Yes |
| Height | 70 mm |
| Depth | 189 mm |
| Leaf weight (max.) 1-leaf | 100 kg |
| Leaf weight (max.) 2-leaf | 100 kg |
| Opening width 1-leaf | 900 mm - 1400 mm |
| Opening width 2-leaf | 1000 mm - 2500 mm |
| Service temperature | 50 °C |
| IP rating | IP20 |
| Disconnection from mains | Main switch in the drive |
| Standard conformity | AutSchR, DIN 18650, DIN EN ISO 13849: Performance Level D, EN 16005 |
