OL 320

Fz 101 vertical gear Without crank rod, without crank

Vertical gear Fz 101 OL 100 accessory
  • Vertical gear can be coupled by rod to the corner transmission
  • Bottom opening width with variable adjustment
  • Restriction of tilted opening through stroke limiter
  • Additional functional safety through overload protection
Contact us

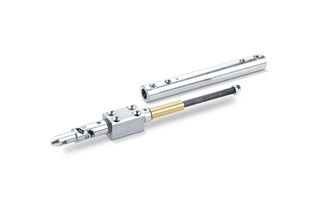

Fz 101 vertical gear

Application Areas

  • For the convenient operation of a rectangular or bespoke angular window using a fixed or detachable crank rod
  • Can be used in combination with an OL 320 scissor on inward-opening bottom-hung windows
  • Installation on wooden, plastic and aluminium windows
  • Frame installation

Technical data

Fz 101 vertical gear
Width 26 mm

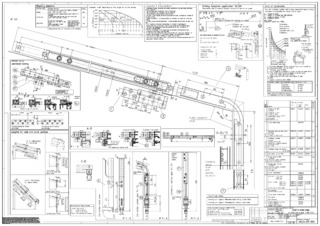

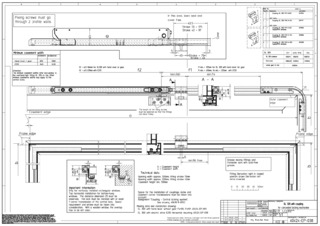

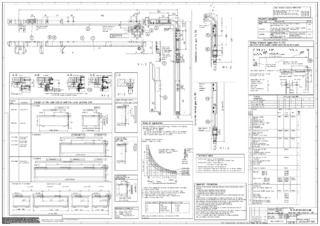

Downloads

Variants & Accessories
