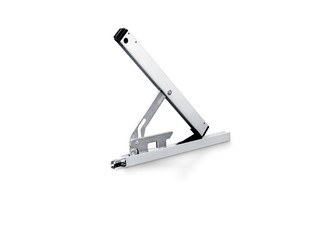

Manual fanlight opener

OL 95 Surface-mounted slimline skylight opener with an opening width of 220 mm

  • Achieves the full opening width of 220 mm for all leaf heights
  • The opening width can be adjusted
  • Less space necessary thanks to flat design of the scissors
  • Integrated leaf locking mechanism in the scissors ensures secure locking
  • Unhinging inhibitor and lockable hand lever offer additional safety
  • Additional locking increases safety and air-tightness
Show more
  • Scissors stay suspension by pressing the release button facilitates window cleaning from inside and outside
  • Completely pre-mounted assembly groups facilitate installation
Contact us

Surface-mounted slimline skylight opener with an opening width of 220 mm

Application Areas

  • Convenient daily ventilation for rooms and staircases
  • Inward opening bottom-hung windows
  • Special forms such as pitched and triangular windows possible
  • Installation on wooden, PVC or aluminium windows
  • Frame installation

Product specifications

OL 95
Length 305 mm
Depth 49 mm
Height 16 mm
Opening width (max.) 220 mm
Leaf width (min.) 440 mm
Min. leaf height 350 mm
Recommended leaf weight up to 60 kg
Fitting stroke 54 mm
Adjustable opening width (stroke reduction) Yes
Leaf lock integrated in the scissor stay Yes
Scissor stay unhooked by release button Yes
Burglary resisting lock (SKG) No
Lockable Yes
Unhinging inhibitor Yes

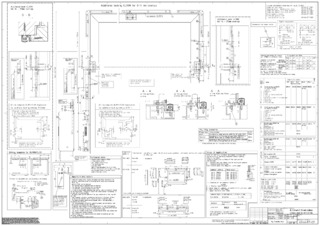

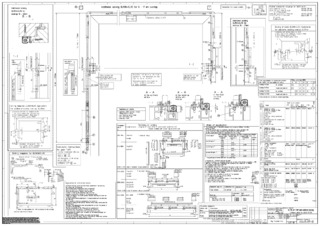

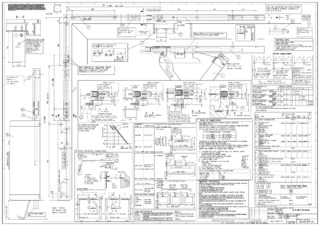

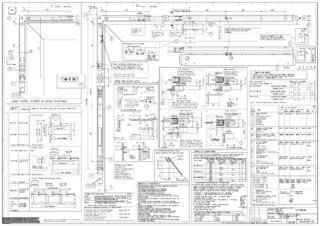

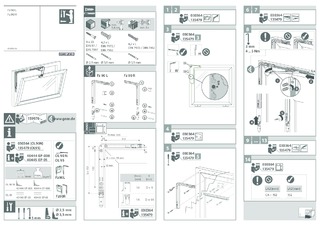

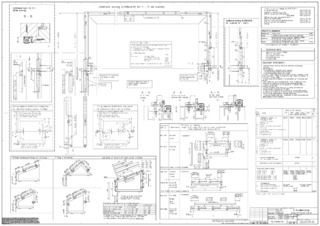

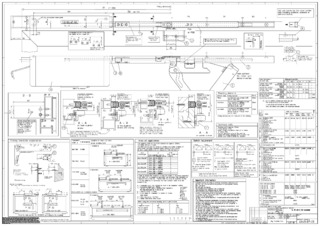

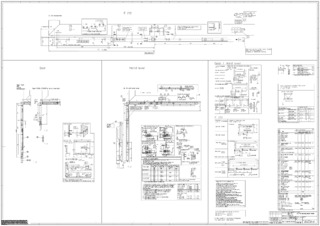

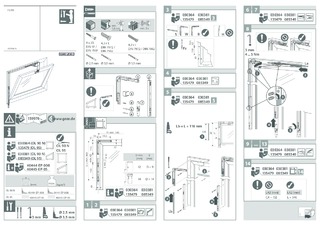

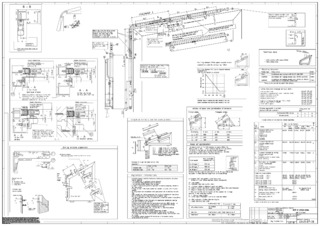

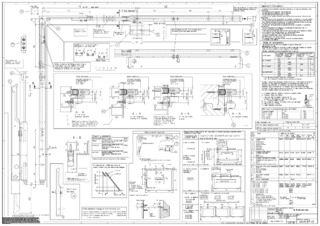

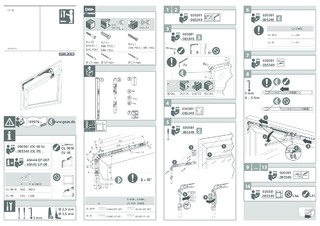

Downloads
