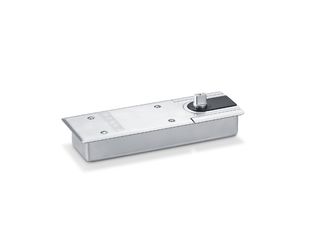

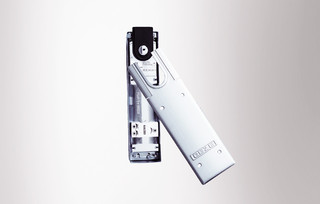

TS 550 NV Floor spring for single leaf single and double-action doors of up to 1400 mm leaf width with adjustable closing force EN 3-6 and with hold-open function that can be switched on and off
- Closing force with variable adjustment EN3-6
- Can be used for right and left hand doors without conversion
- Delayed closing adjustable to adapt the closing force of the door up to approx 80° opening angle
- Mechanical hold-open unit in the door closer with hold-open area 85°-165°

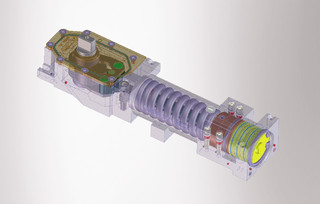

- Hydraulic latching action which accelerates the door shortly before it is closed
- Closing speed can be individually adjusted
- Integrated back check, slows down doors that are thrown open forcefully
- All functions can be adjusted from above and in the installed state
Application Areas
- Right and left single- and double-action doors
- Single- and double-action doors up to 1400 mm leaf width and 300 kg weight
- Frequently used and heavy doors
- Floor mounting, concealed
Installation situations in reference objects and videos

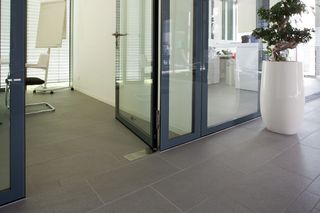

Detailed view of the TS 550 NV at Glas Trösch, Kempten.
GEZE floor spring TS 500 NV for corner bearing all-glass assemblies door leaf suitable for single- and double-action doors © Nikolaus Grünwald / GEZE GmbH

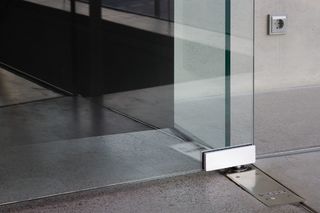

TS 500 NV in Palacio de las Artes, Valencia, Spain
GEZE floor spring TS 500 NV for corner bearing all-glass assemblies door leaf suitable for single- and double-action doors © Pau Esculies / GEZE GmbH
TS 550 NV installed in the GEZE gate, Leonberg.
GEZE floor spring TS 500 NV for corner bearing all-glass assemblies door leaf suitable for single- and double-action doors © Nikolaus Grünwald / GEZE GmbH

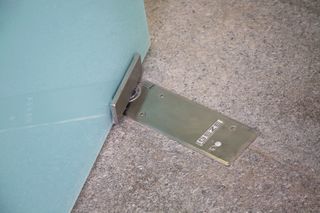

Floor springs TS 500 NV in CGG Drenova Cemetery
GEZE floor spring TS 500 NV for corner bearing all-glass assemblies door leaf suitable for single- and double-action doors, with hydraulic latching action accelerating the door just before reaching the closed position © Robert Les / GEZE GmbH
Floor springs TS 500 NV in CGG Drenova Cemetery, Rijeka
GEZE floor spring TS 500 NV for corner bearing all-glass assemblies door leaf suitable for single- and double-action doors, with hydraulic latching action accelerating the door just before reaching the closed position © Robert Les / GEZE GmbH
Technical data
| TS 550 NV | |
| Use on single-/double-action door | Single-action door, Double-action door |
| Type of installation | Floor |
| Opening angle (max.) | 170 ° |
| Closing force in accordance with EN 1154 | EN 3 - 6 |
| Leaf width (max.) | 1400 mm |
| Leaf weight (max.) | 300 kg |
| DIN direction | left / right |
| Closing force adjustable | Yes, stepless |
| Adjustable closing speed | Yes |
| Latching action adjustable | Yes, via valve |
| Back check integrated | Mechanically fixed |
| Delayed closing integrated | Yes |
| Position of closing force adjustment | Top |
| Hold-open range | 85 ° - 165 ° |
