TS 550 NV

Closer body TS 550 NV Basic body for floor-mounted door closer EN 3-6 with integrated hold-open function

TS 550 NV Floor springs for 1-leaf single/double-action doors
  • Closing force with variable adjustment
  • Closing speed can be adjusted from the top via valves
  • Latching action can be adjusted from the top via valves
  • Back check can be adjusted from the top via valves
  • Delayed closing can be adjusted from the top via valve
  • Mechanical hold-open device with hold-open area from 80° - 165°
Show more
  • Door closer, can be used for right and left hand doors
Contact us

Closer body TS 550 NV

Application Areas

  • Right and left single-action doors
  • Single-action doors up to 1400 mm leaf width
  • For leaf weights up to 300 kg

Technical data

Closer body TS 550 NV
Use on single-/double-action door Single-action door, Double-action door
Opening angle (max.) 170 °
Closing force in accordance with EN 1154 EN 3 - 6
Leaf width (max.) 1400 mm
Leaf weight (max.) 300 kg
DIN direction left / right
Standard conformity EN 1154:1996/A1:2002/AC:2006
Length 342 mm
Width 82 mm
Height 54 mm
Length adjustment range for cement box 9 mm
Width adjustment range for cement box 10 mm
Height adjustment range for cement box 6 mm
Closing force adjustable Yes, stepless
Adjustable closing speed Yes
Latching action adjustable Yes, via valve
Back check integrated Mechanically fixed
Delayed closing integrated Yes
Position of closing force adjustment Top
Safety valve againts overload Yes
Thermo-control valves Yes
Closing effect from 170 °
Hold-open function Mechanical
Hold-open device can be switched on and off Yes
Hold-open device can be overridden Yes

Downloads

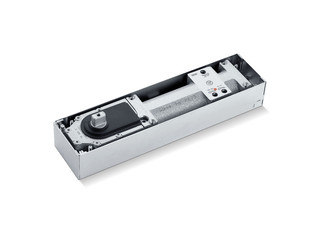

TS 550 NV Product shot (51797)
LABELLING OBLIGATION:  © GEZE GmbH

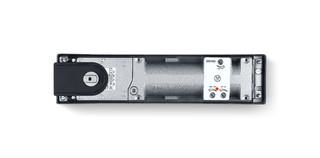

TS 550 NV closer body Product shot (1657192)
LABELLING OBLIGATION:  © GEZE GmbH

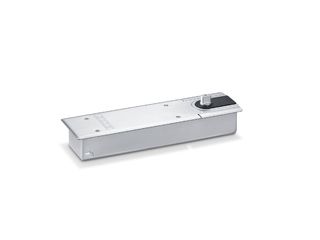

GEZE TS 550 NV closer Product shot (1583372)
LABELLING OBLIGATION:  © GEZE GmbH

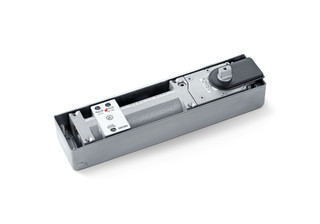

GEZE TS 550 NV closer Product shot (1583373)
