Link arm 2-leaf

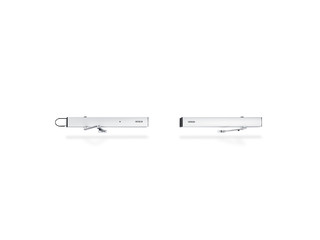

TS 4000 R-IS Overhead door closer system with link arm for double leaf doors with closing sequence control, electric hold-open device and smoke switch

Door closer TS 4000 R-IS Overhead door closer system with link arm for double leaf doors with closing sequence control, electric hold-open device and smoke switch
  • System comprising two door closers TS 4000 R-IS with release mechanism
  • Closing force with variable adjustment from EN1-6
  • Operating voltage 230 V AC
  • Can be used for right and left hand doors without conversion
  • Integrated smoke switch control unit, whose signal closes the door automatically in the event of a fire
  • Smoke switch with contamination indicator and adaption of the alarm threshold
Show more
  • Additional smoke detectors can be fitted
  • Electric hold-open device on both leaves with a hold-open area of 80°-175°
  • Closing sequence control holds the active leaf in the waiting position until the passive leaf is closed
  • Integrated back check on the passive leaf, slows doors that are thrown open forcefully
  • Mechanical latching action which accelerates the door shortly before the closed position
  • Closing speed can be individually adjusted
  • Visual closing force display for easy control of the setting
  • All functions can be set from the front (except for latching action)
Contact us

TS 4000 R-IS

Overhead door closer system with link arm for double leaf doors with closing sequence control, electric hold-open device and smoke switch

Application Areas

  • Fire and smoke protection doors
  • Double leaf single-action doors
  • Single-action doors up to 2800 mm hinge clearance and 1400 mm leaf width
  • Transom installation opposite hinge side
  • Hold-open systems with integrated hold-open device

Technical data

TS 4000 R-IS
Closing force in accordance with EN 1154 EN 1 - 6
Barrier-free in accordance with DIN 18040 up to leaf width (max.) in mm 1400 mm
Leaf width (max.) 1400 mm
Type of installation Transom installation opposite hinge side
Opening angle (max.) 180 °
Input voltage 230 V AC
Suitability for fire protection doors Yes
Closing force adjustable Yes, stepless
Adjustable closing speed Yes
Latching action adjustable Yes, via link arm
Position of closing force adjustment Front
Visual closing force display Yes
Hold-open device on the active leaf / passive leaf Yes / Yes
Hold-open range 80 ° - 175 °
Integrated closing sequence control Yes

Downloads

Variants & Accessories

Link arm TS 4000/2000
Parts

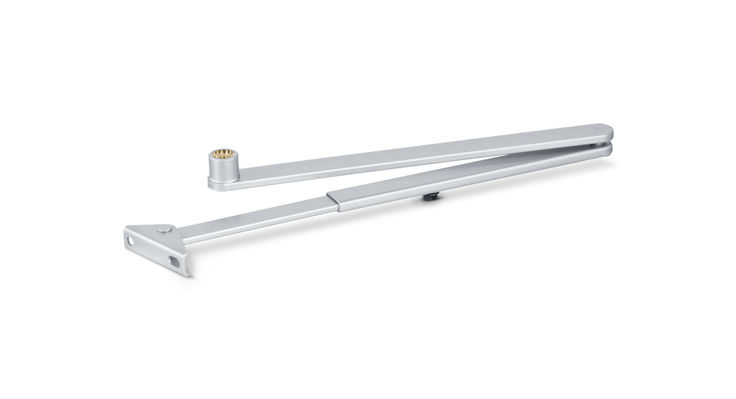

Link arm TS 4000 / 2000

Standard link arm

Product details
Link arm TS 4000/2000
Parts

Link arm TS 4000 / 2000 elongated

For transom installation with reveal depth between 70-170 mm

Product details
GEZE TS 4000 R-IS KM BG Door closer
Parts

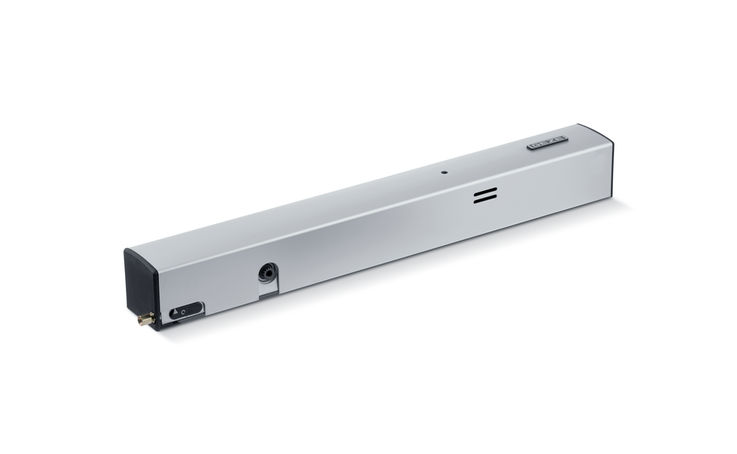

Closer body TS 4000 R-IS KM BG

Main body for overhead door closer with link arm EN 1-6 with smoke control unit, closing sequence control and electric hold-open device

Product details
