TS 5000 L

Guide rail BG wall mounting TS 3/5000 L Guide rail for wall installation with lever, opposite hinge side

Guide rail BG lintel mounting TS 3/5000 L Guide rail (20.7mm) for installation in the lintel on the opposite hinge side for TS 5000 L and TS 3000.
  • With riveted slide block
Contact us

Guide rail BG wall mounting TS 3/5000 L

Application Areas

  • Single leaf doors
  • Installation on the opposite hinge side
  • Right and left single-action doors
  • Lintel installation fixing to the top

Installation situations in reference objects and videos

GEZE TS 5000 L and guide rail BG lintel mounting TS 3/5000 L The guide rail BG lintel mounting TS 3/5000 L offers the option of mounting directly in the lintel of a door without additional accessories such as a lintel bracket.

GEZE TS 5000 L and guide rail BG lintel mounting TS 3/5000 L

The guide rail BG lintel mounting TS 3/5000 L offers the option of mounting directly in the lintel of a door without additional accessories such as a lintel bracket. © GEZE GmbH

Technical data

Guide rail BG wall mounting TS 3/5000 L
Length 550 mm
Width 30.5 mm
Height 20.7 mm
opening restrictor upgradable Yes
Hold-open function Optional
Hold-open device can be overridden Yes

Downloads

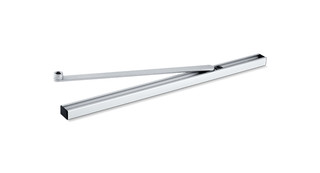

Guide rail BG lintel mounting TS 3/5000 L Product shot (1613232)
LABELLING OBLIGATION:  © GEZE GmbH

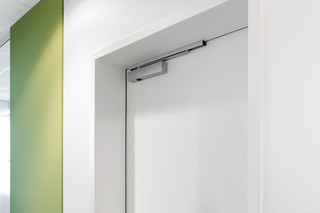

GEZE TS 5000 L and guide rail BG lintel mounting TS 3/5000 L Installation situation (1610740)
LABELLING OBLIGATION:  © GEZE GmbH
Guide rail BG wall mounting TS 3/5000 L * Product data sheet EN
Installation instructions (1610852)
Supplementary sheet DE EN (768969)
Environmental declaration EN (760382)
Environmental declaration EN (2544798)

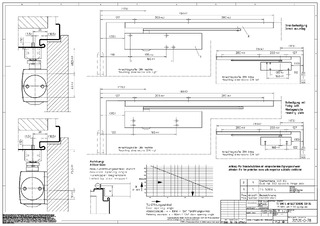

Installation drawing DE EN (1663438)
(.dwg | 199 KB)

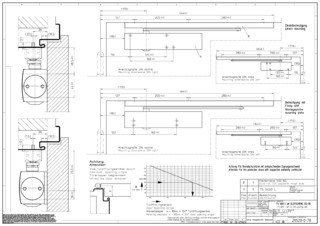

Installation drawing DE EN (1663435)
