Powerturn

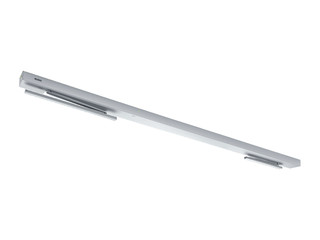

Powerturn F/R-IS/TS Semi-automatic system with swing door drive on active leaf and door closer on passive leaf for fire and smoke protection doors with integrated smoke switch
- Smart swing function for easy manual door opening
- Closing force of EN4-7 with variable adjustment
- Integrated smoke switch control unit, whose signal closes the door automatically in the event of a fire
- Opening and closing speed can be individually adjusted
- Mechanical latching action when operated without current, and electrical automatic unit latching action in regular operation, which accelerates the door shortly before it is closed
- Mechanical and electrical closing sequence control holds the active leaf in the waiting position until the passive leaf is closed
- Low-energy function opens and closes the door with reduced speed, fulfilling the highest safety demands
- Obstacle detection detects an object through contact and stops the opening or closing process
- Automatic reversing detects an obstacle and returns to the opening position
- Push & Go function triggers the automatic drive following light manual pressure on the door leaf
- Drive can be used with roller guide rail or link arm
- Servo function for motorized support when manually opening the door
- Optional radio reception board for wireless activation by radio transmitter
- Freely configurable inputs and outputs for different functions
- Can be networked, and integrated into the building automation via open standard (BACnet)
Application Areas
- Fire and smoke protection doors
- Hold-open systems with integrated hold-open function – country-specific specifications must be observed
- Right and left double leaf single-action doors
- Single-action doors up to 3200 mm hinge clearance with link arm installation
- Single-action doors up to 2800 mm hinge clearance with roller guide rail installation
- Minimum hinge clearance 1500 mm, minimum passive leaf width 470 mm (depending on installation type)
- Interior and exterior doors with high access frequency
- Transom installation hinge and opposite hinge side
- Symmetrical and asymmetrical division of door possible
Installation situations in reference objects and videos
Technical data
Powerturn F/R-IS/TS | |
Leaf weight (max.) 1-leaf | 600 kg |
Minimum passive leaf width | 470 mm |
passive leaf width max. | 1400 mm |
active leaf width min. | 856 mm |
active leaf width max. | 1600 mm |
Reveal depth (max.) | 160 mm |
Opening angle (max.) | 136 ° |
DIN left | Yes |
DIN right | Yes |
Transom installation opposite hinge side with link arm | Yes |
Transom installation hinge side with roller guide rail | Yes |
Mechanical latching action | Yes |
Electrical latching action | Yes |
Mechanical closing sequence control | Yes |
Disconnection from mains | Main switch in the drive |
Power supply for external consumers (24 V DC) | 1.2 A |
Service temperature | -15 - 50 °C |
Mode of operation | Automatic, Off, Permanently open, Shop closing, Night |
Automatic function | Yes |
Low-energy function | Yes |
function smart swing | Yes |
Servo function | Yes |
Obstacle detection | Yes |
Automatic reversing | Yes |
Push & Go | adjustable |
Operation | Programme switch DPS, Programme switch integrated in the drive, MPS programme switch |
Standard conformity | DIN 18650, EN 16005 |
Suitability for fire protection doors | Yes |
Smoke switch integrated | Yes |
