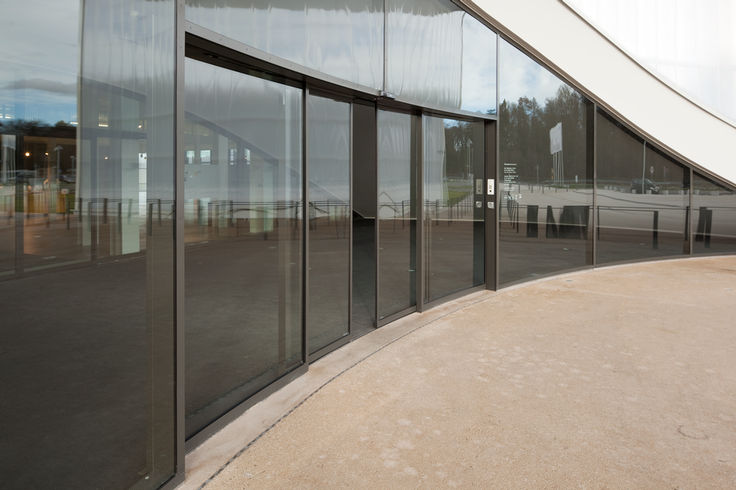

Slimdrive SC Automatic curved sliding door system for the realization of semi curved solutions and vestibule systems
- Very quiet running, low-wear direct current drive with a height of only 7 cm
- 40 % more opening width than with linear sliding door drives
- Various drive variants possible, e.g. double entrance, corner door, arc, semicircle
- Can be networked, and integrated into the building automation via open standard (BACnet)
- Independent error recognition and recording
- Freely configurable inputs and outputs for different functions
- Integrated, rechargeable battery for emergency opening in case of safety-relevant faults, such as power failure
- Self-cleaning roller carriage reduces maintenance effort and costs
- Various mechanical and electrical locks are optionally available
Application Areas
- Single and double leaf door systems
- Interior and exterior doors with high access frequency
- Representative building entrances with large incidence of light
- Façades with slim mullion-transom constructions
- Glass façades with the highest design standards
- Vestibule systems, in combination with linear sliding doors
- Opening widths of 800 to 3000 mm possible
- Door leaf weights up to maximally 120 kg
- Suitable profile systems are fine-framed profile systems with ISO and mono glass and all-glass systems (GGS)

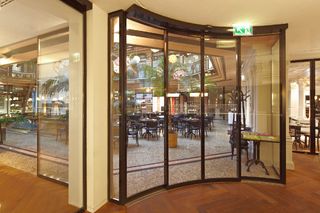

Installation situations in reference objects and videos
Rigshospitalet Denmark
A curved glass sliding door with Slimdrive SC drive is integrated in the smart glass façade in front of the revolving door of the patient entrance. © GEZE GmbH
Technical data
| Slimdrive SC | |
| Barrier-free | Yes |
| Adjustable opening speed (ventilation) | Yes |
| Adjustable closing speed | Yes |
| Opening width 2-leaf | 800 mm - 3000 mm |
| Clear passage height | 3000 mm |
| Canopy height (min.) | 75 mm |
| Leaf weight (max.) 1-leaf | 120 kg |
| Leaf weight (max.) 2-leaf | 120 kg |
| Radius (min.) | 1000 mm |
| Moving leaf version | 10 mm LSG, Special glass on request |
| Side elements version | 10 mm LSG, 22 mm panel lining, Special glass on request |
| Surface | Powder-coated according to RAL, Anodised light alloy E6/EV1, colour anodised according to sample, Coated with polished stainless steel, coated with grit 240 stainless steel, special coating on request |
| Version of roof structure | optical sheet metal covering, waterproof roof with waterspout, Glass roof |
| Illumination | with roof variant, not possible with glass roof, according to customer wishes |
| Floor covering | Entrance mat, Entrance mat according to customer wishes |
| Hot-air curtain system | possible, depends on the ceiling construction |
| Off-centre façade connection | Yes |
| Special functions on request | Yes |
| Operation | Programme switch DPS, Programme switch TPS, Control via building management system, PC, Control unit, Headquarters |
| Standard conformity | DIN 18650, EN 16005 |

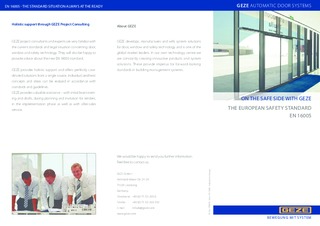

Downloads
