Terminal for bi-directional escape routes - T 320 Series
T 320 UP control unit Slave control unit for bidirectional escape routes with a TZ 320 or TZ 322
- Flat impact cover enables fast and safe activation of the illuminated emergency push button in panic situations
- Coloured connectors facilitate electrical connection
Application Areas
- Terminal functions as additional interface for a TZ 320 to trigger an indirect release of a bi-directional emergency exit
- Realisation of a bidirectional emergency exit
- Realisation of an escape balcony
- Designed for installation in 55-type flush-mounted ranges
- Can be mounted in flush-mounted sockets 62.5 mm deep
Technical data
| T 320 UP control unit | |
| Type of installation | Flush-mounted installation |
| Service temperature | -10 - 50 °C |
| IP rating | IP30 |
| Operating voltage | 24 V DC |
| Current consumption | 100 mA |
| Supply voltage | 24 V DC |
| Sabotage contact | Yes |
| Emergency push button | Yes |
| Visual display | yes |
| Volume | 75 db |
| With ribbon cable | Yes |
| Conforms to the EltVTR (guidelines for electronic locking systems) | Yes |
Downloads
Control unit T 320 UP
LABELLING OBLIGATION:
© Appel Grafik / GEZE GmbH

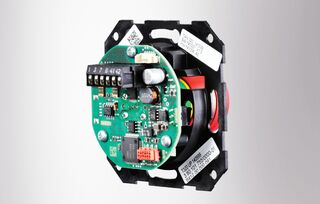

Back of the T 320 UP
LABELLING OBLIGATION:
© GEZE GmbH
