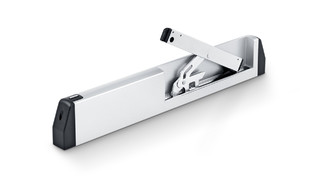

E 170 230 V Scissor drive as design solution for optimum ventilation
- Combines the OL 90 N fanlight opener and the E 212 electric linear drive in a single product
- Scissors integrated in the cover profile
- Attractive design and additional protection against contamination
- Opening width is variably adjustable and can therefore be flexibly regulated on site
Scissor drive as design solution for optimum ventilation

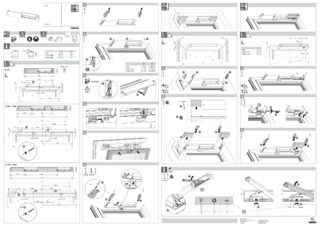

Application Areas
- Natural ventilation in the façade area
- Inward-opening bottom-hung leaves
- Installation on wooden, PVC or metal windows
- Frame installation
Technical data
| E 170 230 V | |
| i dimension (min.) | 20 mm |
| i dimension (max.) | 70 mm |
| Opening width (max.) | 170 mm |
| Opening speed ventilation | 4.9 mm/s |
| Compressive force | 1500 N |
| Tensile force | 1500 N |
| Panel weight (max.) | 80 kg/m² |
| operating voltage | 230 V AC |
| Current consumption | 0.2 A |
| Power consumption | 50 W |
| Duty rating | 25 % |
| Min. core cross section | 1.5 mm² |
| Number of cores | 4 cores |
| Service temperature | -20 - 60 °C |
| IP rating | IP42 |
| Type of stroke shortening | Mechanical |
| End position cut-off extended | Limit switches |
| End position cut-off retracted | Limit switches |
| Overload cut-off | Yes |
| Bottom-hung window INWARD-opening frame installation | Yes |
