OL 90 N

Scissors OL 90 N Scissors OL 90 N with standard leaf bracket

GEZE OL 90 N scissors
  • Achieves the full opening width of 170 mm for all leaf heights
  • Little space necessary thanks to flat design of the scissors
  • Locking in the scissors guarantees a safe leaf locking mechanism
  • Unhinging inhibitor on the scissors offers additional safety
  • Scissor unhooking by pressing the release button facilitates window cleaning from inside and outside
  • Completely pre-mounted assembly groups facilitate installation
Contact us

Scissors OL 90 N

Application Areas

  • Convenient daily ventilation for rooms and staircases
  • Inward-opening rectangular windows with bottom-hung leaves
  • Installation on wooden (no Euro-groove), PVC or aluminium windows
  • Frame installation

Technical data

Scissors OL 90 N
Opening width (max.) 170 mm
Leaf width (min.) 380 mm
Leaf height (min.) 250 mm
Leaf weight (max.) 80 kg
Space needed (max.) 19 mm
Adjustable opening width (stroke reduction) Yes

Downloads

Accessories for gears Fz 90, Fz 91, Fz 92, Fz 100 and Fz 101 (.dwg | 166 KB)
Block diagram OL 90 N (.dwg | 1 MB)

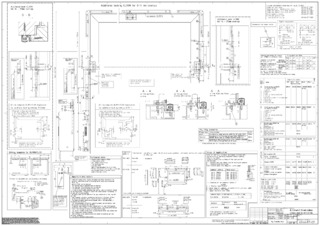

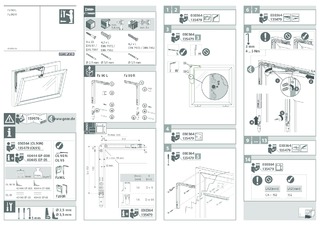

Block diagram OL 90 N (.pdf | 557 KB) Installation drawing DE EN (785027)

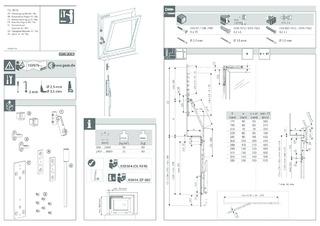

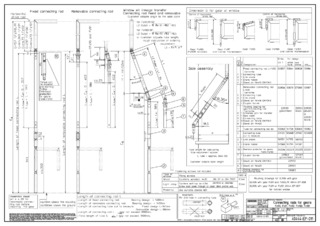

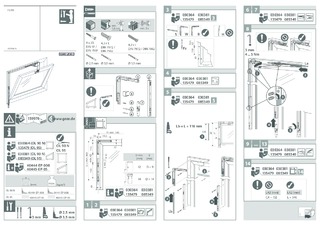

Connecting rods for gear Fz 90, Fz 91, Fz 92, Fz 100 and Fz 101 (.pdf | 205 KB) Installation drawing EN (785174)
Installation drawing OL 90 N flexible link arm for post-transom façade (.dwg | 192 KB)
Installation drawing OL 90 N flexible link arm round and segmental arch window (.dwg | 247 KB)

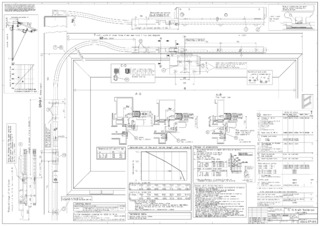

Installation drawing OL 90 N flexible tension for post-transom façade (.pdf | 345 KB) Installation drawing EN (785084)

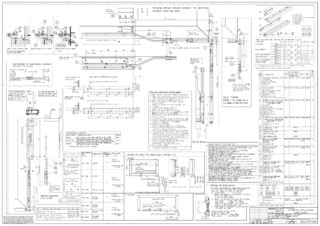

Installation drawing OL 90 N outward opening toward bottom-hung window (.pdf | 510 KB) Installation drawing EN (785294)
Installation drawing OL 90 N Scissors (.dwg | 431 KB)
Installation drawing OL 90 N Scissors (.dxf | 2 MB)
Installation drawing OL 90 N Top-hung windows opening outward (.dwg | 415 KB)

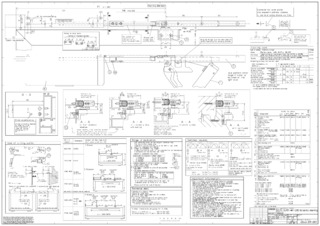

Installation drawing OL 90 N with E 212 horizontal (.pdf | 439 KB) Installation drawing EN (786175)
Installation drawing OL 90 N with E212 horizontal (.pdf | 442 KB) Installation drawing EN (1391498)
Installation plan OL 90 N / OL 95 with E 212 and additional locking (.dwg | 245 KB)
Installation plan OL 90 N / OL 95 with E 212 and additional locking (.pdf | 474 KB) Installation drawing EN (1609877)
Installation plan OL 90 N / OL 95 with E 212 and additional locking (.dxf | 2 MB)
Installation plan OL 90 N with additional locking (.dwg | 468 KB)

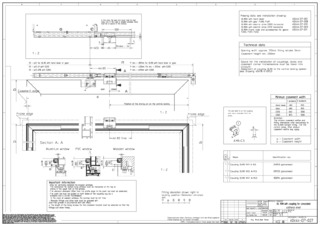

Installation plan OL 90 N with coupling (.pdf | 191 KB) Installation drawing EN (1609884)
Installation plan OL 90 N with coupling (.dxf | 1 MB)

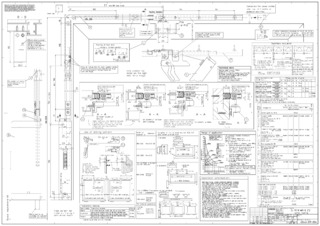

Installation plan OL 90 N with E 212 vertical mounting (.pdf | 477 KB) Installation drawing EN (1597354)
Installation plan OL 90 N with E 212 vertical mounting (.dxf | 2 MB)
OL 90 N flexible operation with E 212 or Fz 91 (.dxf | 835 KB)

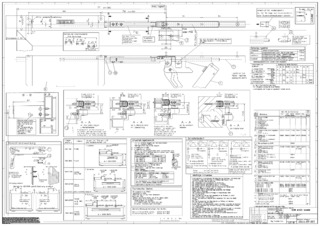

OL 90 N with E 212 horizontal (.pdf | 452 KB) Installation drawing DE EN (1597326)

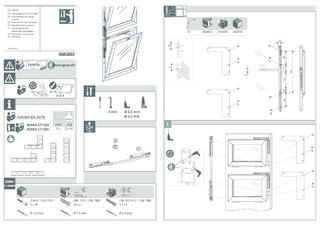

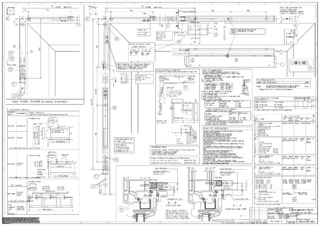

OL 90 N with Fz 90 or Fz 91 (.pdf | 428 KB) Installation drawing EN (1708477)
OL 90 N with Fz 90 or Fz 91 (.dwg | 473 KB)
OL 90 N with Fz 91 and additional locking (.dxf | 2 MB)
Fanlight opener OL 90 N with hand lever

LABELLING OBLIGATION:  © GEZE GmbH

Installation situation (869238)
OL 90 N with hand lever, Academy of Fine Arts Alfter

LABELLING OBLIGATION:  © Lothar Wels / GEZE GmbH

Installation situation (51233)
OL 90 N with hand lever, Academy of Fine Arts Alfter

LABELLING OBLIGATION:  © Lothar Wels / GEZE GmbH

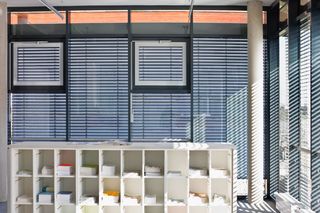

Installation situation (48396)
OL 90 N, Hotel Amano

LABELLING OBLIGATION:  © Stefan Dauth / GEZE GmbH

Installation situation (47720)
OL 90 N, Killesberg Stadtquartier (urban district)

LABELLING OBLIGATION:  © Nikolaus Grünwald / GEZE GmbH

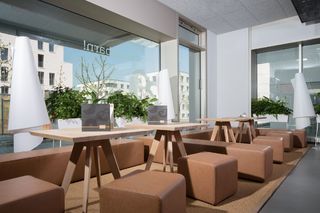

Installation situation (492380)
OL 90 N, Killesberg Stadtquartier (urban district)

LABELLING OBLIGATION:  © Nikolaus Grünwald / GEZE GmbH

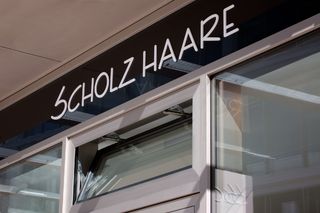

Installation situation (492379)
OL 90 N, Killesberg Stadtquartier (urban district)

LABELLING OBLIGATION:  © Nikolaus Grünwald / GEZE GmbH

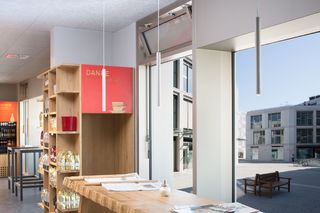

Installation situation (492381)
TS 5000 + OL 90 N post-frame transmission, Augustinum

LABELLING OBLIGATION:  © Dirk Wilhelmy / GEZE GmbH

Installation situation (44512)
GEZE OL 90 N scissors

LABELLING OBLIGATION:  © GEZE GmbH

Product shot (672031)
OL 90 N

LABELLING OBLIGATION:  © GEZE GmbH

Product shot (49882)
OL 90 N closed

LABELLING OBLIGATION:  © GEZE GmbH

Product shot (50401)
OL 90 N Detail, Slimline skylight opener

LABELLING OBLIGATION:  © GEZE GmbH

Product shot (45668)
