OL 90 N

Scissors OL 90 N Scissors OL 90 N without leaf bracket

OL 95 open Surface-mounted Slimline fanlight opener for vertically installed rectangular windows with an opening width of 220 mm
  • Achieves the full opening width of 170 mm for all leaf heights
  • Integrated leaf locking mechanism in the scissors ensures secure locking
  • Flexible use in combination of variants of leaf brackets
Contact us

Scissors OL 90 N

Application Areas

  • Inward-opening bottom-hung leaves
  • For rectangular windows
  • Create specialised shapes like angled, triangular, round and segmental arch windows
  • Installation on wooden, PVC or metal windows
  • Suitable for overlap heights of 0-25 mm
  • Flexible right/left use/operation
  • Frame installation

Downloads

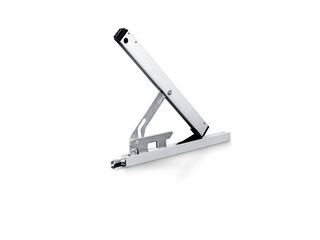

OL 95 open Product shot (50594)
LABELLING OBLIGATION:  © GEZE GmbH
Scissors OL 90 N * Product data sheet EN Scissors OL 90 N * Product data sheet EN
Award certificate OL 90 fanlight openers with hand lever and scissor stay gripping and cleaning scissor stay Certificate DE EN (786284)

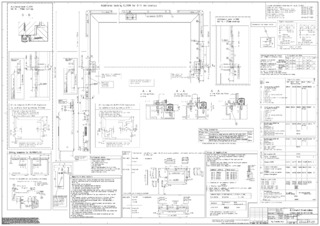

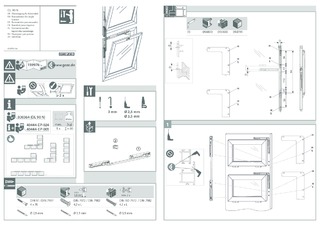

Block diagram OL 90 N Installation drawing DE EN (785027)

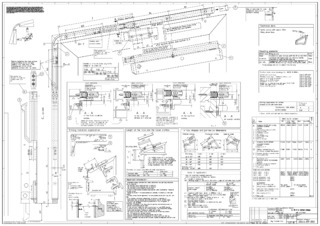

Installation drawing OL 90 N with E212 horizontal Installation drawing EN (1391498)
Installation plan OL 90 N / OL 95 with E 212 and additional locking
(.dwg | 245 KB)
Installation plan OL 90 N / OL 95 with E 212 and additional locking Installation drawing EN (1609877)
Installation plan OL 90 N / OL 95 with E 212 and additional locking
(.dxf | 2 MB)
Installation plan OL 90 N flexible rod on round and segmental arch windows Installation drawing EN (1609870)
Installation plan OL 90 N flexible rod on round and segmental arch windows
(.dxf | 2 MB)
Installation plan OL 90 N flexible rod on round and segmental arch windows
(.dwg | 369 KB)
Installation plan OL 90 N for pitched windows
(.dwg | 399 KB)
Installation plan OL 90 N for pitched windows
(.dxf | 1 MB)
Installation plan OL 90 N for pitched windows Installation drawing EN (1609848)
Installation plan OL 90 N for triangular windows Installation drawing EN (1609862)
Installation plan OL 90 N for triangular windows
(.dxf | 2 MB)
Installation plan OL 90 N for triangular windows
(.dwg | 494 KB)
Installation plan OL 90 N with additional locking
(.dxf | 2 MB)
Installation plan OL 90 N with additional locking
(.dwg | 468 KB)
Installation plan OL 90 N with coupling Installation drawing EN (1609884)
Installation plan OL 90 N with coupling
(.dxf | 1 MB)
Installation plan OL 90 N with coupling
(.dwg | 147 KB)

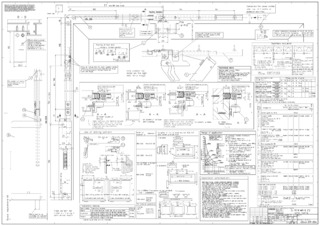

Installation plan OL 90 N with E 212 vertical mounting Installation drawing EN (1597354)
Installation plan OL 90 N with E 212 vertical mounting
(.dxf | 2 MB)
OL 90 N flexible operation with E 212 or Fz 91
(.dxf | 835 KB)
OL 90 N with Fz 91 and additional locking
(.dxf | 2 MB)

Variants & Accessories

Sliding leaf bracket
Accessories

Sliding leaf bracket for OL 90 N / OL 95

Sliding leaf bracket for special window shapes suitable for OL 90 N / OL 95 scissors on wooden windows with Euro groove

Product details
Sliding leaf bracket for special window shapes
Accessories

Standard leaf bracket for OL 90 N / OL 95

Standard leaf bracket suitable for OL 90 N and OL 95 scissors

Product details
Default leaf bracket for wooden windows
Accessories

Standard leaf bracket for OL 90 N / OL 95

Standard leaf bracket suitable for OL 90 N / OL 95 scissors on wooden windows with Euro groove and for use on semi-circular arch and segmental arch windows.

Product details
