Boxer ISM

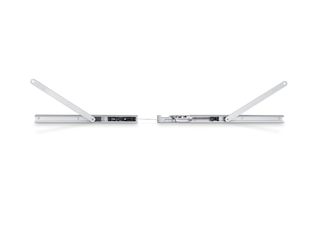

ISM guide rail Boxer With closing sequence control and lever
- Closing sequence control holds the active leaf in the waiting position until the passive leaf is closed
- Vandalism protection through flexible Bowden cable
- Flexible repositioning of the Bowden cable release mechanism in the frame, e.g. with passive leaf lockings
- With screwed slide block
- Minimal installation effort due to low number of individual parts and quick setting
Application Areas
- Double leaf doors with closing sequence control
- Integrated installation
- Right and left single-action doors
- Symmetrical and asymmetrical division of door possible
- For passive leaves from 540 mm
- Minimum hinge clearance 1300 mm, minimum width of passive leaf 540 mm
Technical data
| ISM guide rail Boxer | |
| Minimum hinge clearance | 1300 mm |
| Minimum passive leaf width | 540 mm |
| Standard conformity | EN 1158 |
| Width | 31 mm |
| Height | 30 mm |
| Hold-open function | Optional |
| Closing sequence control integrated | Yes |
| Flexible opening restrictor | Yes |
Downloads
ISM/guide rail, 2-leaf / E-ISM guide rail 1-leaf Boxer
