Boxer E

E guide rail Boxer With lever and electric hold-open device

E guide rail Boxer
  • Operating voltage 24 V DC
  • Retention force of the electromechanical hold-open device can be variably adjusted
  • With screwed slide block
Contact us

E guide rail Boxer

Application Areas

  • Single leaf doors
  • Integrated installation
  • Hold-open systems with integrated hold-open device
  • Right and left single-action doors

Technical data

E guide rail Boxer
Input voltage 24 V DC
Electrical power consumption 1 W
Duty rating 100 %
Residual ripple 20 %
IP rating IP43
Standard conformity EN 1155
Length 440 mm
Width 31 mm
Height 30 mm
Hold-open function Electrical
Hold-open device can be switched on and off Yes
Hold-open device can be overridden Yes
Hold-open range 80 ° - 120 °
Flexible opening restrictor Yes

Downloads

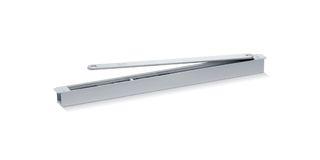

E guide rail Boxer Product shot (673507)
LABELLING OBLIGATION:  © GEZE GmbH
E guide rail Boxer Product data sheet EN
Installation instructions DE EN FR (769967)
Wiring diagram EN (776658)
Certificate EN (913710)
Environmental declaration EN (760382)
Environmental declaration EN (2544798)

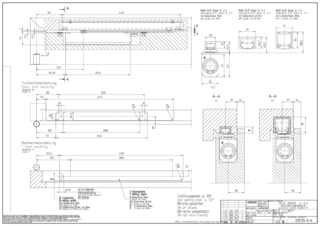

Installation drawing (758760)
Boxer EN 2-4 rebated timber door
(.dxf | 680 KB)

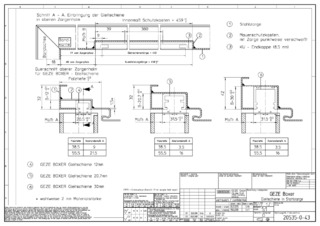

Installation drawing (764742)
Boxer guide rails installation in steel frame
(.dxf | 419 KB)

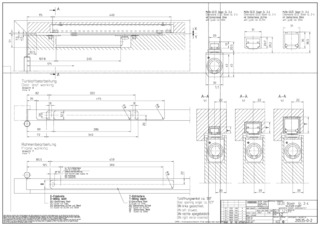

Installation drawing (758826)

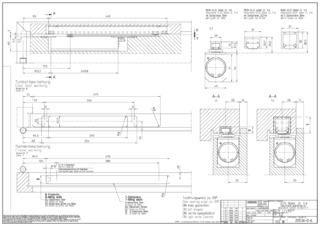

Installation drawing (758984)
Boxer size 3-6 rebated timber door
(.dxf | 594 KB)

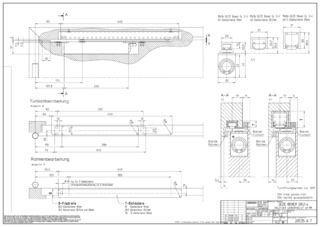

Installation drawing (763931)
Timber door flush-closing Boxer 2-4
(.dxf | 687 KB)

Variants & Accessories

Sliding block for opening restriction
Accessories

Flexible opening restrictor

For E and R guide rails, 1- and 2-leaf

Product details
