Boxer

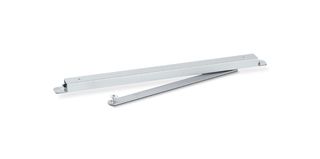

Guide rail Boxer 20,7 mm With an overall height of 20.7 mm and lever

Guide rail Boxer 20.7 mm overall height
  • With screwed slide block
Contact us

Guide rail Boxer 20,7 mm

Application Areas

  • Single leaf doors
  • Integrated installation
  • Right and left single-action doors

Technical data

Guide rail Boxer 20,7 mm
Length 440 mm
Width 31 mm
Height 20.7 mm
opening restrictor upgradable Yes
Hold-open function Optional

Downloads

Variants & Accessories

GEZE mechanical hold-open unit
Accessories

Mechanical hold-open unit

For standard/T-Stop/Boxer 20.7 mm guide rail
