TS 500 NV

TS 500 NV with hold-open unit Floor spring for single leaf single-action/double-action doors up to 1100 mm leaf width with optional hold-open device

TS 550 NV Floor springs for 1-leaf single/double-action doors
  • Closing force EN 1-4 with variable adjustment
  • Can be used for right and left hand doors without conversion
  • Mechanical hold-open unit in the door closer with hold-open area 85°/90°/105°/120°
  • Closing speed can be individually adjusted
  • Hydraulic latching action which accelerates the door shortly before it is closed
  • Integrated back check, slows down doors that are thrown open forcefully
Show more
  • All functions can be adjusted from above and in the installed state
Contact us

TS 500 NV with hold-open unit

Application Areas

  • Right and left single- and double-action doors
  • Single- and double-action doors up to 1100 mm leaf width and 150 kg weight
  • Floor mounting, concealed

Technical data

TS 500 NV with hold-open unit
Use on single-/double-action door Single-action door, Double-action door
Type of installation Floor
Opening angle (max.) 170 °
Closing force in accordance with EN 1154 EN 1 - 4
Leaf width (max.) 1100 mm
Leaf weight (max.) 150 kg
DIN direction left / right
Closing force adjustable Yes, stepless
Adjustable closing speed Yes
Latching action adjustable Yes, via valve
Back check integrated Mechanically fixed
Position of closing force adjustment Top

Downloads

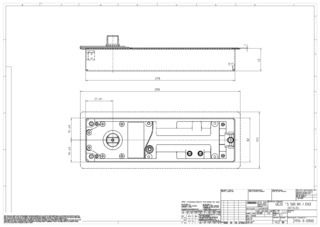

TS 500 NV dimensions (.dwg | 173 KB)
TS 550 NV

LABELLING OBLIGATION:  © GEZE GmbH

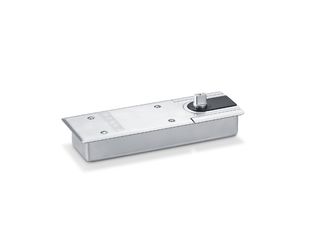

Product shot (49484)

Variants & Accessories

TS 550 NV
Parts

Closer body TS 500 NV

Basic body for floor-mounted door closer EN 1-4

Product details
GEZE floor spring cover plates
Parts

Floor spring cover plate

For TS 500 NV / TS 500 N EN3

Product details
TS 550 NV
Parts

Closer body TS 500 NV

Basic body for floor-mounted door closer EN 1-4
