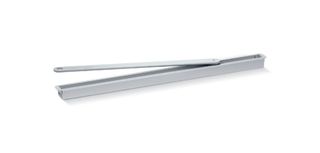

Guide rail Boxer 20,7 mm With an overall height of 20.7 mm, mechanical hold-open device and lever

Guide rail Boxer 20.7 mm
  • End position correction of +/- 0.8° possible
  • With screwed sliding block
  • Retention force of the hold-open mechanism can be adjusted
Contact us

With an overall height of 20.7 mm, mechanical hold-open device and lever

Application Areas

  • Single leaf doors
  • Integrated installation
  • Right and left single-action doors
  • To hold open on non-fire protection doors

Technical data

Guide rail Boxer 20,7 mm
Length 440 mm
Width 31 mm
Height 20.7 mm
opening restrictor upgradable Yes
Hold-open function Mechanical
Hold-open device can be switched on and off Yes
Hold-open device can be overridden Yes
Hold-open range 80 ° - 120 °
