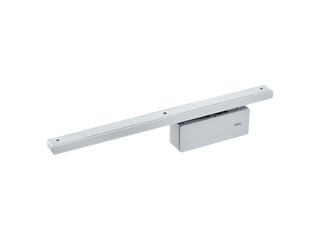

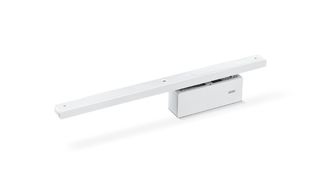

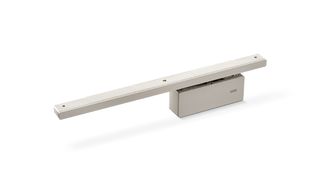

GEZE ActiveStop timber, surface-mounted Door damper on both sides for interior wooden swing doors
- Door opening angle with variable adjustment from 80°-140°
- Can be used for right and left hand doors without conversion
- Soft opening and closing of doors up to max. 45 kg leaf weight
- Gentle stopping, quiet closing and comfortable keeping open of doors
- Practically eliminates slamming doors, trapped fingers, and damage to walls and furniture
- Secure holding of the door when open, meaning no door is stopper necessary
- Opening and closing damping when installed can be set via a valve
- Integrated safety valve offers overload protection
Application Areas
- Right and left timber single-action doors indoors
- Room doors with high access convenience
- Single-action doors up to 1100 mm leaf width
- Surface-mounted installation, for retrofitting on existing doors
- Barrier-free access in accordance with DIN 18040-2
Installation situations in reference objects and videos

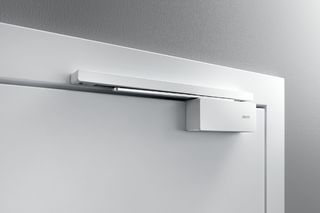

GEZE ActiveStop surface-mounted on a timber door
Gentle stopping, quiet closing and comfortable holding open of doorsPractically eliminates issues like slamming doors, trapped fingers and damage to walls or furniture. © GEZE GmbH
The new door control GEZE ActiveStop - door damper Product video
The GEZE ActiveStop door damper can gently stop doors, close them quietly and hold them open comfortably. This eliminates annoying banging doors and damaged walls and furniture.
GEZE ActiveStop surface-mounted | Timber door | Installation
GEZE ActiveStop brings greater comfort to your home, without compromises. It eliminates issues like slamming doors, trapped fingers and damage to walls or furniture. GEZE ActiveStop combines functionality, safety and aesthetics – and enables you to experience a whole new level of door control.
Technical data
| GEZE ActiveStop timber, surface-mounted | |
| Depth | 34 mm |
| Height | 68 mm |
| Leaf weight (max.) | 45 kg |
| Leaf width (max.) | 1100 mm |
| Category of door | flush-mounted, rebated |
| Identical design for DIN left and DIN right | Yes |
| Installation type | surface-mounted |
| Adjustable draw-in damper | Yes, via valve |
| Draw-in damper in direction of closing movement from | 25 ° |
| Free swing area | 25 ° - 60 ° |
| Draw-in damper in direction of opening movement from | 60 ° |
| Adjustable door opening angle | Yes, stepless |
| Hold-open position adjustable | 80 ° - 140 ° |
| Safety valve againts overload | Yes |
