Door draw-in damper

GEZE ActiveStop integrated Door damper on both sides for interior wooden swing doors

GEZE ActiveStop, integrated Draw-in damper on both sides for single-action doors without fire protection stipulations
  • Door opening angle with variable adjustment from 80°-140°
  • Can be used for right and left hand doors without conversion
  • Soft opening and closing of doors up to max. 45 kg leaf weight
  • Gentle stopping, quiet closing and comfortable keeping open of doors
  • Practically eliminates slamming doors, trapped fingers, and damage to walls and furniture
  • Secure holding of the door when open, meaning no door is stopper necessary
Show more
  • Opening and closing damping when installed can be set via a valve
  • Integrated safety valve offers overload protection
Buy online

GEZE ActiveStop integrated

Application Areas

  • Right and left timber single-action doors indoors
  • Room doors with high access convenience
  • Single-action doors up to 1100 mm leaf width
  • Integrated installation in the door leaf
  • Barrier-free access in accordance with DIN 18040-2
Go to campaign page

This product has been awarded

German Design Award 2016 Winner
Singapore Good Design Award 2019 Winner
Singapore Good Design Award 2019 for GEZE ActiveStop.

Installation situations in reference objects and videos

GEZE ActiveStop integrated Draw-in damper on both sides for single-action doors without fire protection demands

GEZE ActiveStop integrated

Draw-in damper on both sides for single-action doors without fire protection demands

The new door control GEZE ActiveStop - door damper Product video

The GEZE ActiveStop door damper can gently stop doors, close them quietly and hold them open comfortably. This eliminates annoying banging doors and damaged walls and furniture.

Technical data

GEZE ActiveStop integrated
Depth 28 mm
Height 64 mm
Leaf weight (max.) 45 kg
Leaf width (max.) 1100 mm
Category of door flush-mounted, rebated
Leaf thickness from 38 mm
Identical design for DIN left and DIN right Yes
Rebate space approx. 6 mm clearance in handle area
Installation type concealed
Adjustable draw-in damper Yes, via valve
Draw-in damper in direction of closing movement from 25 °
Free swing area 25 ° - 60 °
Draw-in damper in direction of opening movement from 60 °
Adjustable door opening angle Yes, stepless
Hold-open position adjustable 80 ° - 140 °
Safety valve againts overload Yes

Downloads

Variants & Accessories

GEZE ActiveStop milling cover
Accessories

Milling edge cover

For covering the milling edge of rebated doors

Product details
GEZE ActiveStop milling fixture
Accessories

Milling fixture

For milling door leaves and frames for the GEZE ActiveStop integrated

Product details

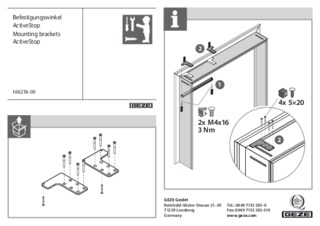

GEZE ActiveStop fastening strips for guide rail
Accessories

Guide rail fixing plates

For fixing the concealed horizontally installed guide rail if there is insufficient screw depth

Product details
