Link arm 1-leaf

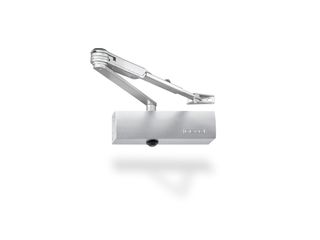

TS 1500 with hold-open arm Overhead door closer with link arm for single leaf doors with a leaf width up to 1100 mm
- Variable closing force of EN 3 or EN 4 by reversing the bearing block
- Can be used for right and left hand doors without conversion
- Mechanical hold-open unit through hold-open linkage with hold-open area 70°-150°
- Hydraulic latching action which accelerates the door shortly before it is closed
- Closing speed can be individually adjusted
Application Areas
- Right and left single-action doors
- Holds doors without smoke and fire protection requirements open
- Single-action doors up to 1100 mm leaf width
- Door leaf installation hinge side and transom installation opposite hinge side
- Door leaf installation opposite hinge side in parallel arm installation possible
Technical data
| TS 1500 with hold-open arm | |
| Closing force in accordance with EN 1154 | EN 3/4 |
| Leaf width (max.) | 1100 mm |
| Type of installation | Door leaf installation hinge side, Door leaf installation opposite hinge side, Transom installation opposite hinge side |
| Opening angle (max.) | 180 ° |
| Closing force adjustable | Yes, via installation |
| Adjustable closing speed | Yes |
| Latching action adjustable | Yes, via link arm |
| Hold-open range | 70 ° - 150 ° |
Downloads
TS 1500 with hold-open arm
