TS 5000 R/0

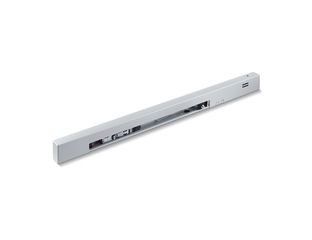

R guide rail TS 5000 with integrated smoke switch control unit and lever, without electric hold-open device
- Integrated smoke switch control unit
- Smoke switch with contamination indicator and adaption of the alarm threshold
- Additional smoke detectors can be fitted
- Operating voltage 230 V AC
- Horizontally adjustable in the installation position by 4 mm through elongated holes
- With screwed slide block
Application Areas
- Single leaf doors
- Hold-open systems with integrated smoke switch
- For combination with a free swing door closer or hold-open magnet
- Installation on hinge side
- Right and left single-action doors
Technical data
R guide rail TS 5000 | |
Supply voltage | 230 V AC |
Input voltage | 230 V AC |
Frequency of supply voltage | 50/60 Hz |
Duty rating | 100 % |
IP rating | IP20 |
Approvals | General building approval from DIBt as a hold-open system |
Length | 745 mm |
Width | 55 mm |
Height | 30 mm |
opening restrictor upgradable | Yes |
Hold-open function | Optional |
Smoke switch integrated | Yes |
Contamination indicator | Yes |
Adaption of the alarm threshold | Yes |
Integrated power supply | Yes |
Height correction possible | Yes |
Flexible opening restrictor | Yes |
