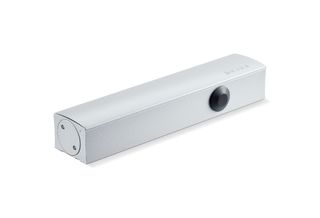

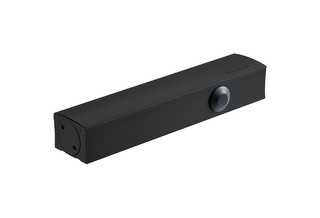

Closer body TS 5000 L ECline For overhead door closers with guide rail EN 3-5 on the opposite hinge side and with opening assistance
- Closing force can be variably adjusted from the front
- Visual closing force display ensures correct setting
- Closing seed can be adjusted from the front via valve
- Latching action can be adjusted from the front via valve
- Back check can be adjusted from the front via valve
- Door closer, can be used for right and left hand doors
- Minimal installation effort due to low number of individual parts and quick setting
- Barrier-free in accordance with DIN 18040 up to EN5 (1250 mm leaf width)
Application Areas
- Fire and smoke protection doors
- Right and left single-action doors
- Single-action doors up to 1400 mm leaf width
- Door leaf installation opposite hinge side and transom installation hinge side
Installation situations in reference objects and videos
TS 5000 door closer installation video
The design of this overhead door closer for single leaf door uses clean lines. It is authorised for installation on fire and smoke protection doors.
Technical data
| Closer body TS 5000 L ECline | |
| Closing force in accordance with EN 1154 | EN 3 - 5 |
| Leaf width (max.) | 1250 mm |
| Type of installation | Door leaf installation opposite hinge side, Transom installation hinge side |
| Opening angle (max.) | 120 ° |
| Identical design for DIN left and DIN right | Yes |
| Standard conformity | DIN 18040, EN 1154:1996/A1:2002/AC:2006 |
| Suitability for fire protection doors | Yes |
| Length | 287 mm |
| Width | 47 mm |
| Height | 60 mm |
| Closing force adjustable | Yes, stepless |
| Adjustable closing speed | Yes |
| Latching action adjustable | Yes, via valve |
| Back check integrated | Yes, hydraulically adjustable |
| Position of closing force adjustment | Front |
| Visual closing force display | Yes |
| Safety valve againts overload | Yes |
| Thermo-control valves | Yes |
